Consult-II Basic Operation Procedure

  1. With the ignition switch OFF, connect "CONSULT-II" and "CONSULT-II CONVERTER" to the data link connector, and turn the ignition switch ON.
    Fig 1: Displaying Consult II
    G02381266Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Touch "START (NISSAN BASED VHCL)".

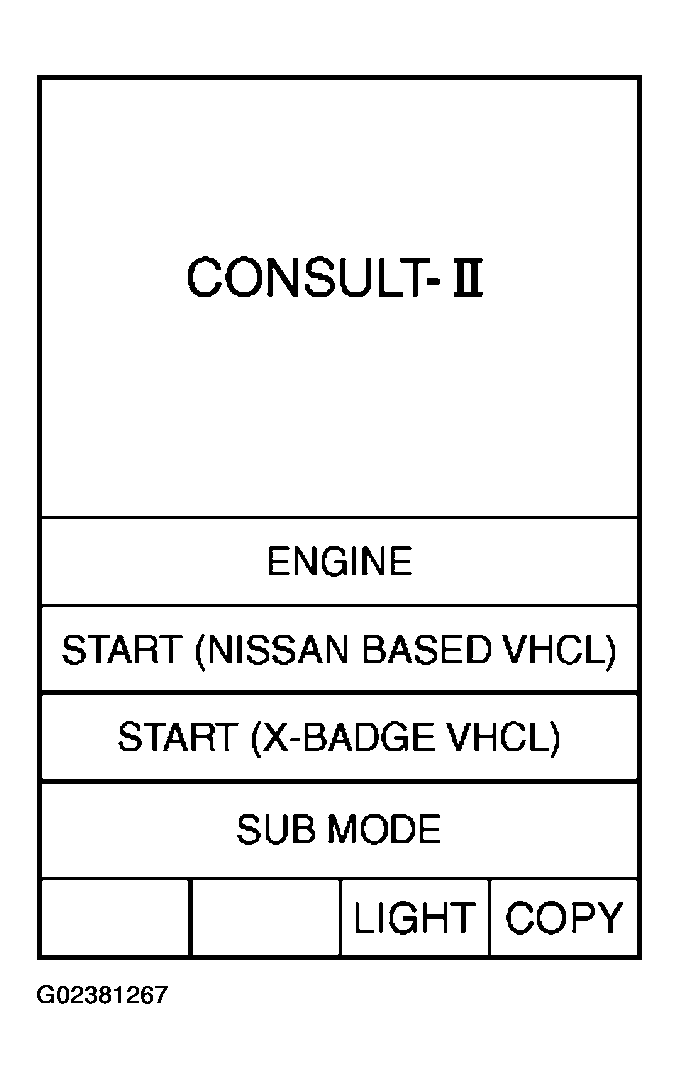

    Fig 2: Displaying Consult II Touch START
    G02381267Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Touch "IVMS" on "SELECT SYSTEM" screen. If "IVMS" is not indicated, go to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".

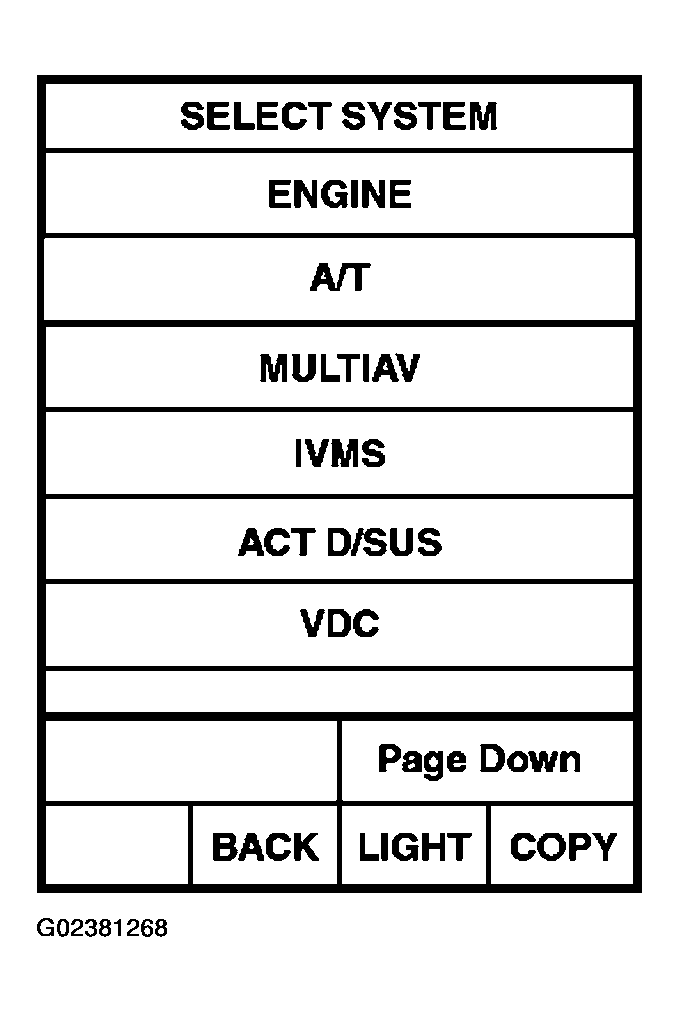

    Fig 3: Displaying Consult II IVMS Select System
    G02381268Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Check the model specification, touch either "WITH SUNROOF" or "WITHOUT SUNROOF".
  5. Touch "OK". If the selection is wrong, touch "CANCEL".
  6. Select the desired part to be diagnosed on the "SELECT TEST ITEM" screen.

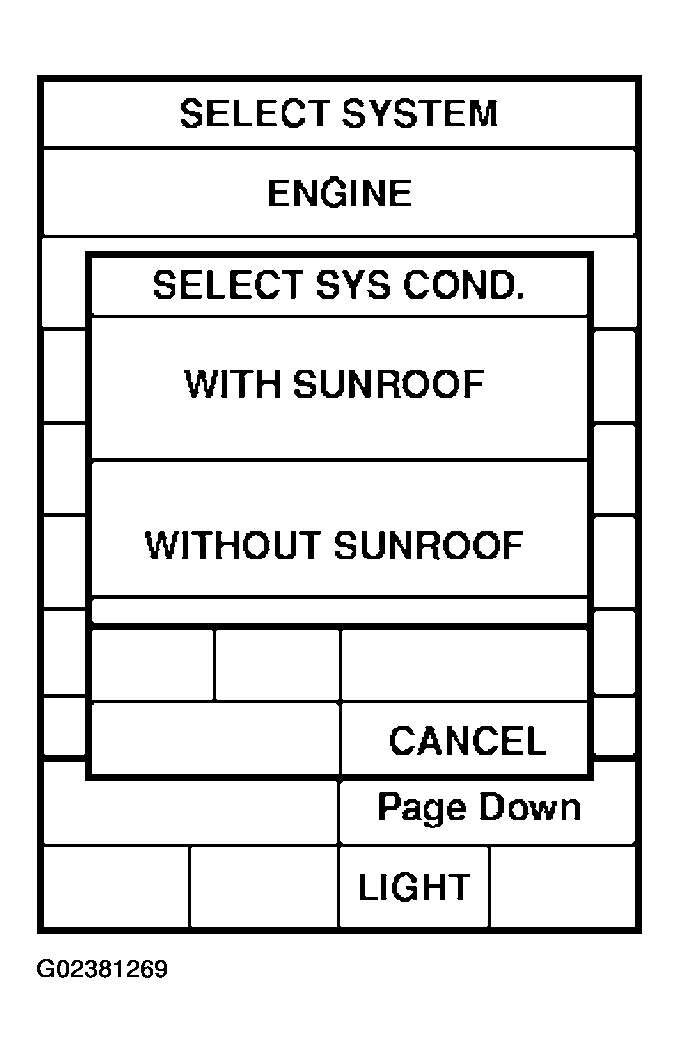

    Fig 4: Displaying Consult II With Sunroof
    G02381269Courtesy of NISSAN MOTOR CO., U.S.A.
