Intake Valve Timing Control Position Sensor

Disconnect intake valve timing control position sensor harness connector.
Loosen the fixing bolt of the sensor.
Remove the sensor.
Visually check the sensor for chipping.

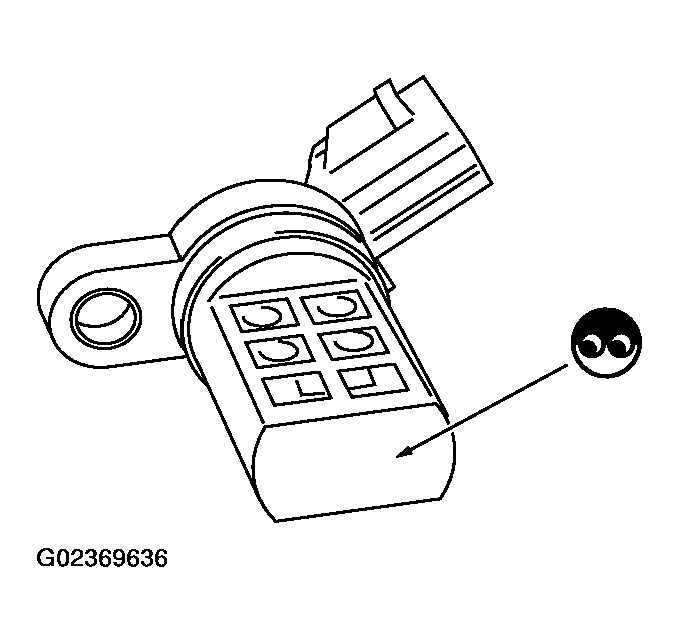

Fig 1: Visually Checking Sensor For Chipping
Courtesy of NISSAN MOTOR CO., U.S.A.
Check resistance as shown below.

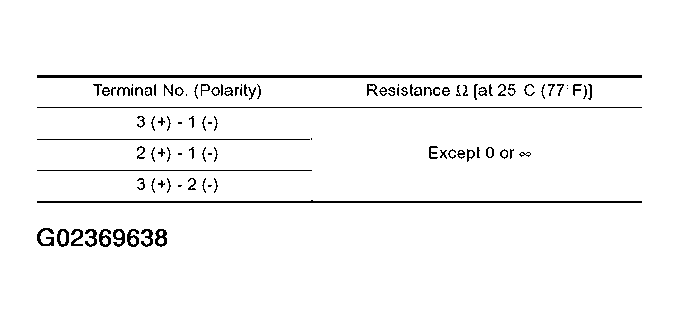

Fig 2: Intake Valve Timing Control Position Sensor Terminals Resistance Specifications Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

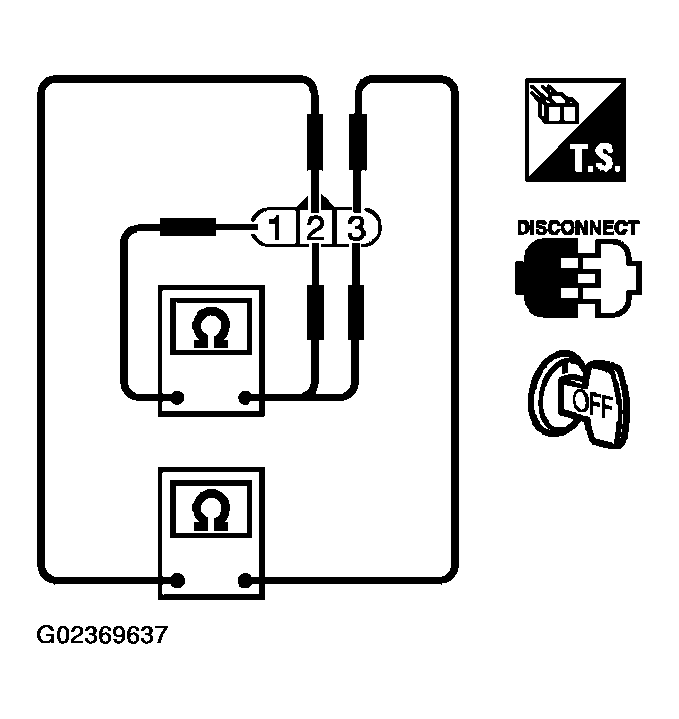

Fig 3: Checking Intake Valve Timing Control Position Sensor Resistance
Courtesy of NISSAN MOTOR CO., U.S.A.
If NG, replace intake valve timing control position sensor.
