EVAP Canister: Notes

Check EVAP canister as follows:

1. Pinch the fresh air hose.
2. Blow air into port A  and check that it flows freely out of port B  .

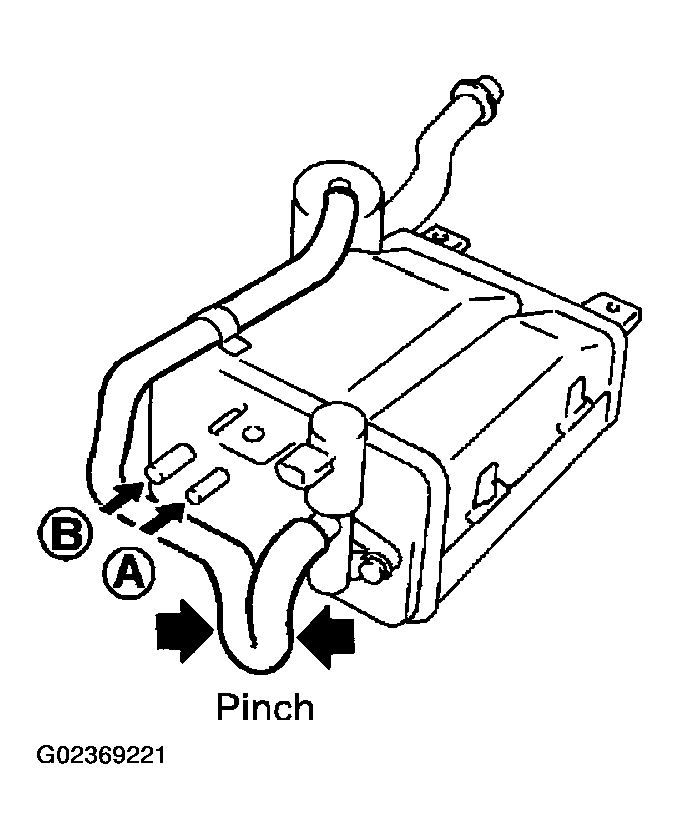

   Fig 1: Locating Pinch Portion Of Fresh Air Hose

   Courtesy of NISSAN MOTOR CO., U.S.A.
