Monitored Item

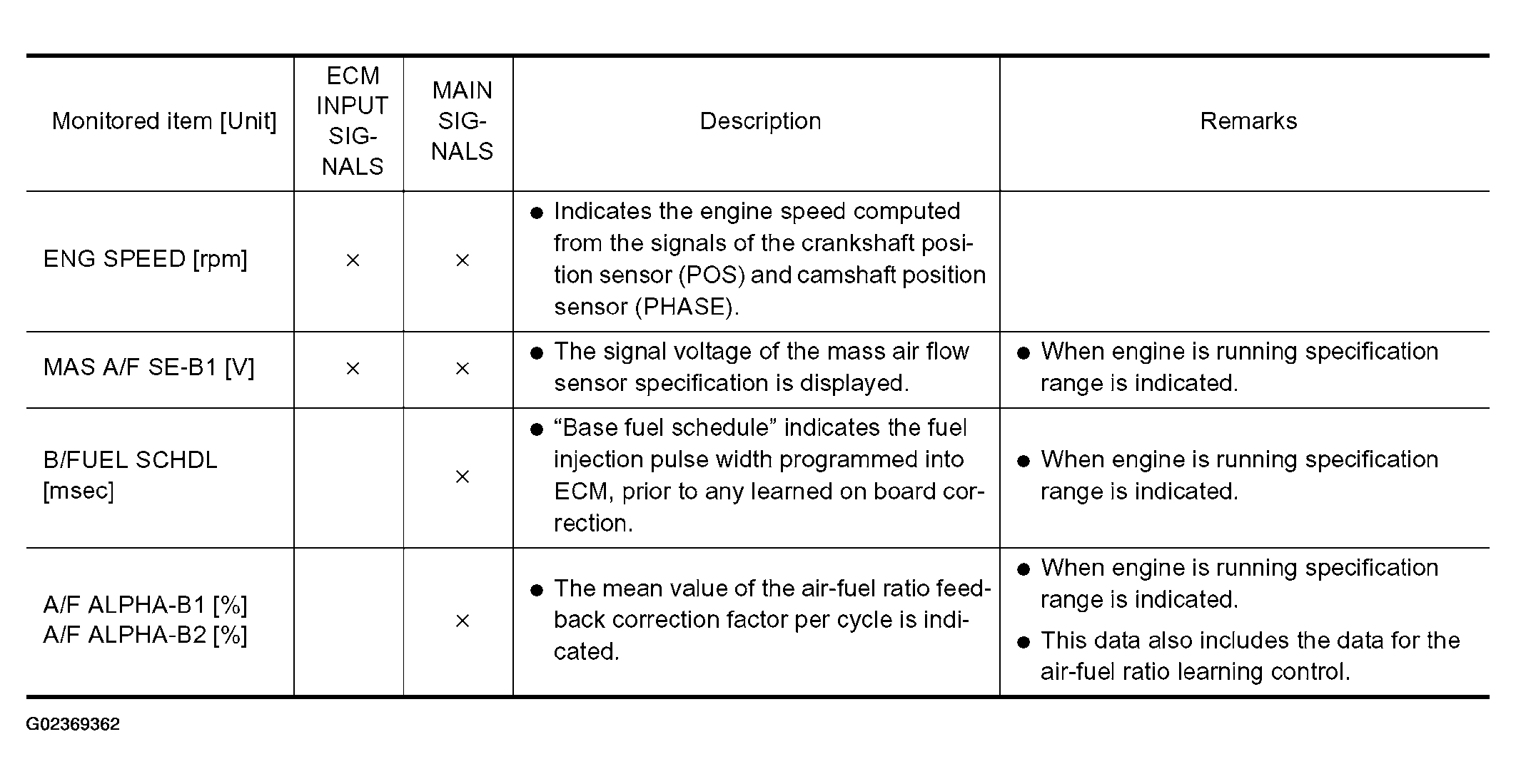

Fig 1: Monitored Item Description - Data Monitor (SPEC) Mode
G02369362Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE: Any monitored item that does not match the vehicle being diagnosed is deleted from the display automatically.
