Home >> Infiniti >> 2005 >> Q45 >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System - System Testing >> Injector Circuit >> CONSULT-II Reference Value in Data Monitor Mode

CONSULT-II Reference Value in Data Monitor Mode

Specification data are reference values.

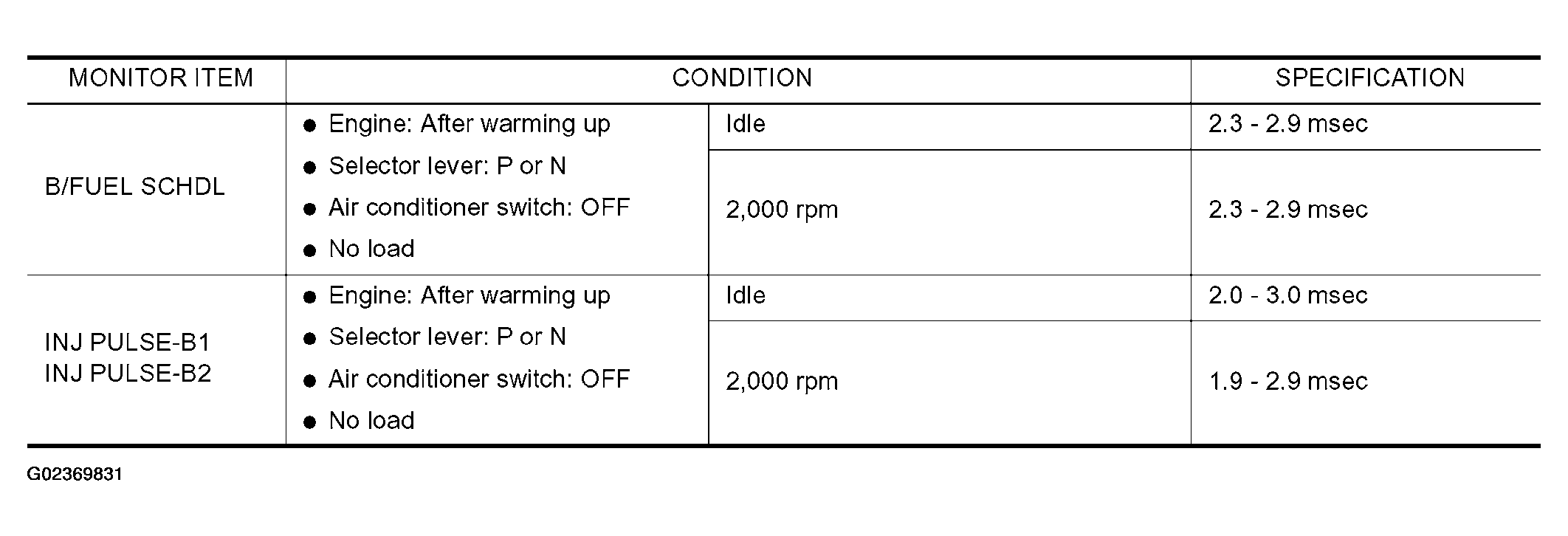

Fig 1: Monitor Item Specifications Chart

G02369831

Courtesy of NISSAN MOTOR CO., U.S.A.
