Engine Control System - System Testing
>>
Mil And Data Link Connector
>>
Wiring Diagram
Mil And Data Link Connector: Wiring Diagram
Fig 1: Wiring Diagram - EC-MIL/DL-01
Courtesy of NISSAN MOTOR CO., U.S.A.

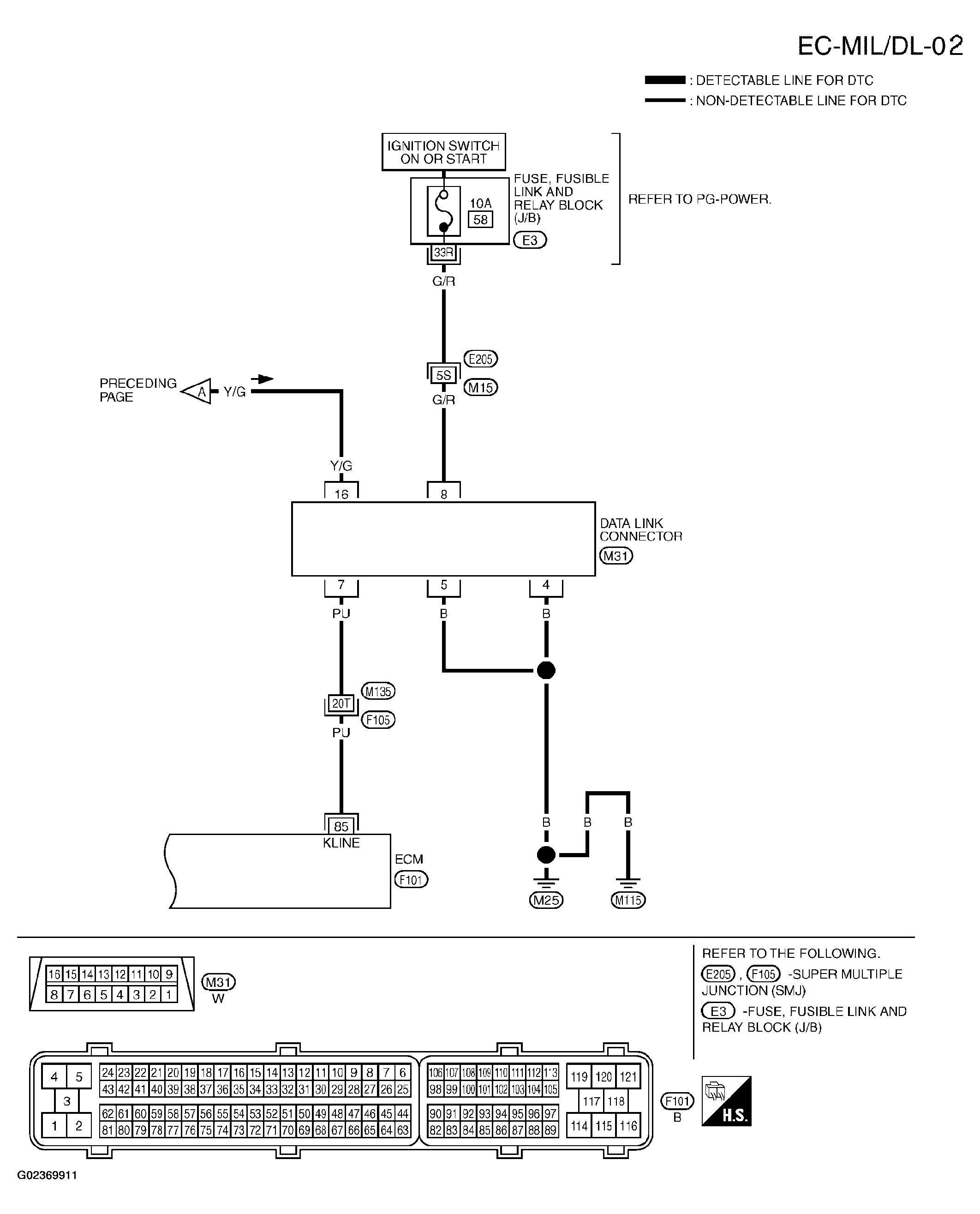

Fig 2: Wiring Diagram - EC-MIL/DL-02
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
