Key Switch
Key Switch
Check continuity between terminals of the key switch and key lock solenoid harness connector.

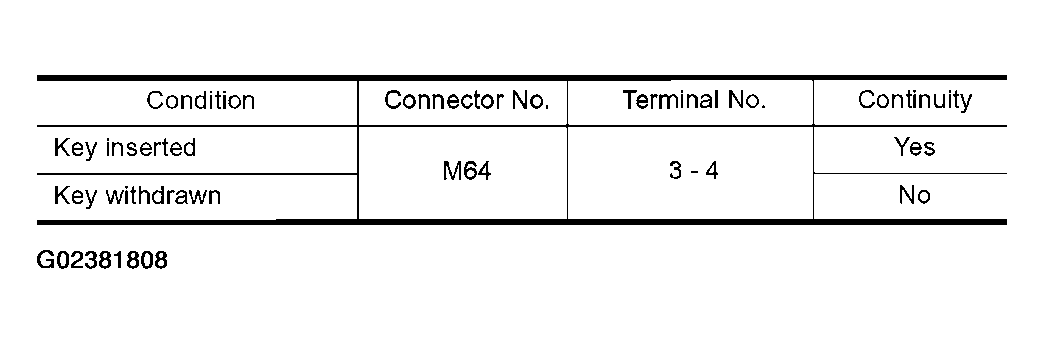

Fig 1: Key Switch And Key Lock Solenoid Harness Connector Terminals Continuity Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

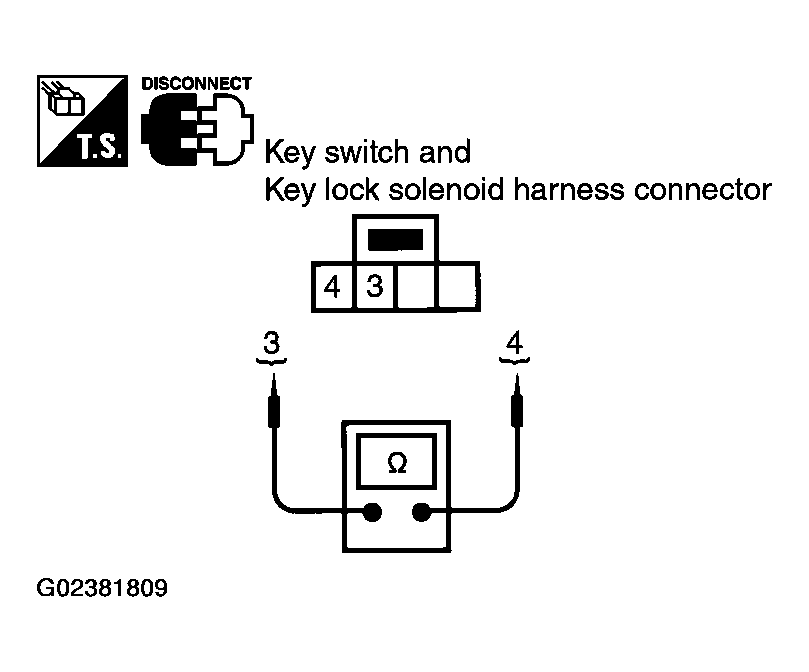

Fig 2: Checking Continuity Between Terminals Of Key Switch And Key Lock Solenoid Harness Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
