Automatic Transmission: Overhaul: Components

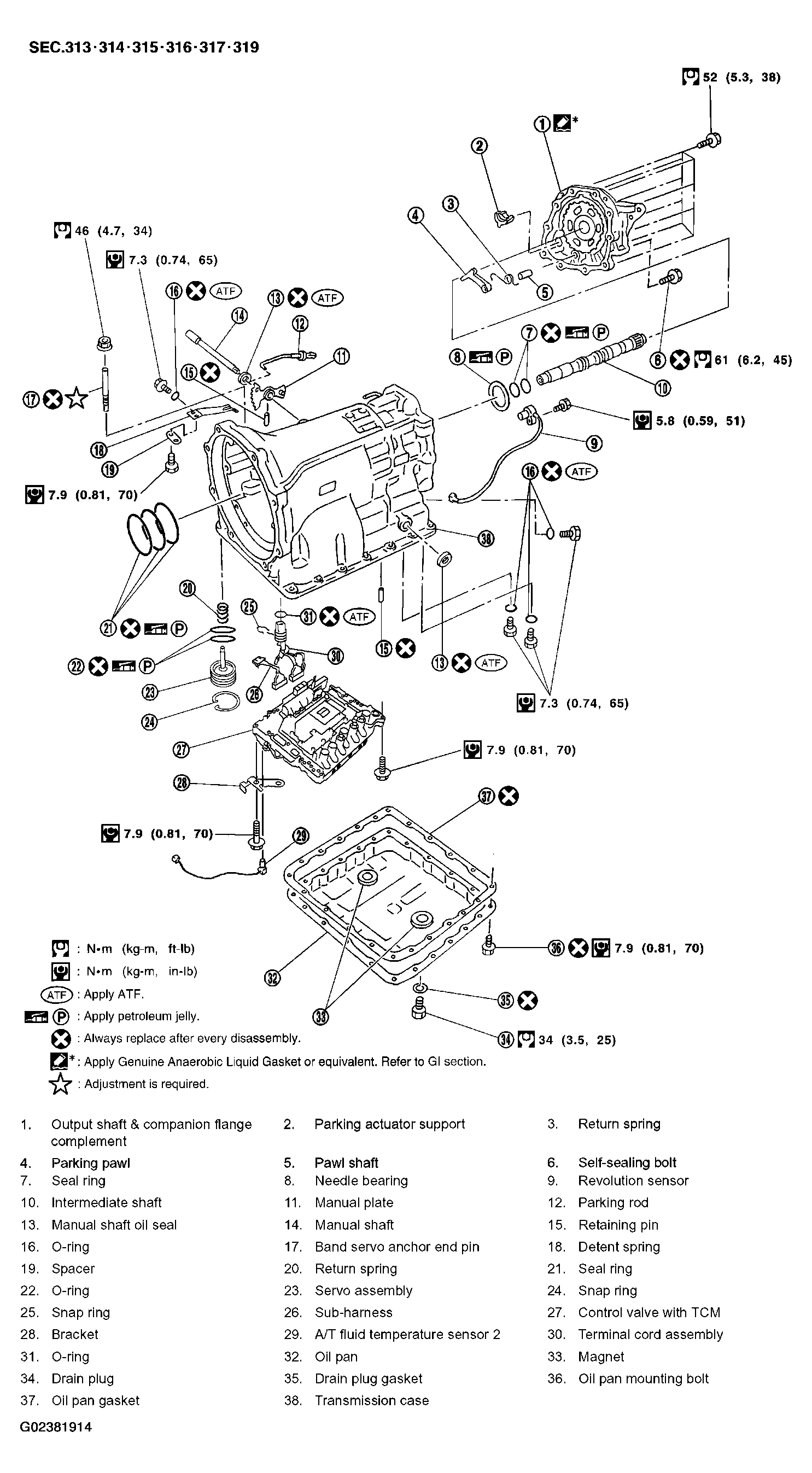

Fig 1: Transmission Assembly Replacement Components With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

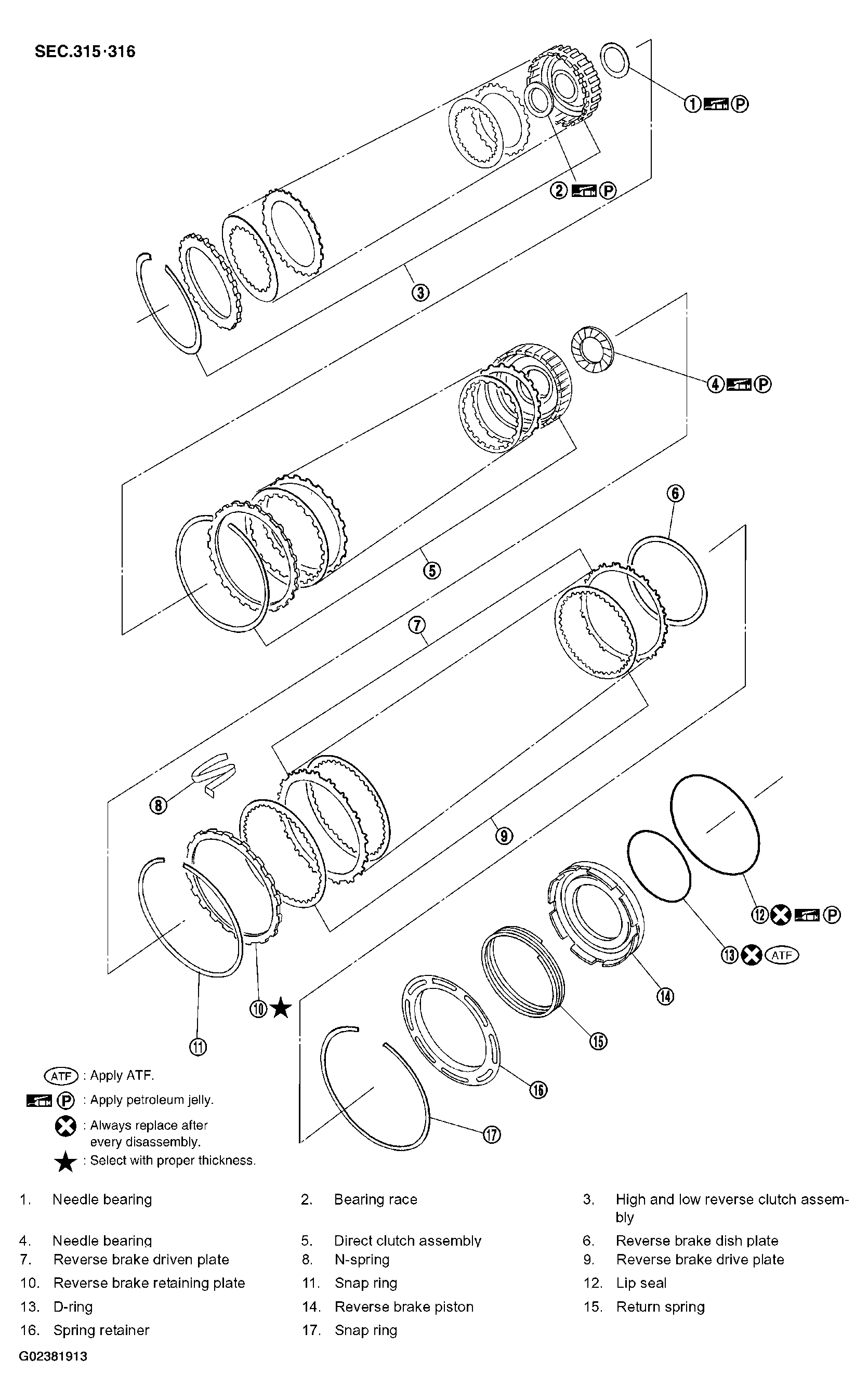

Fig 2: Transmission Assembly Replacement Components With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

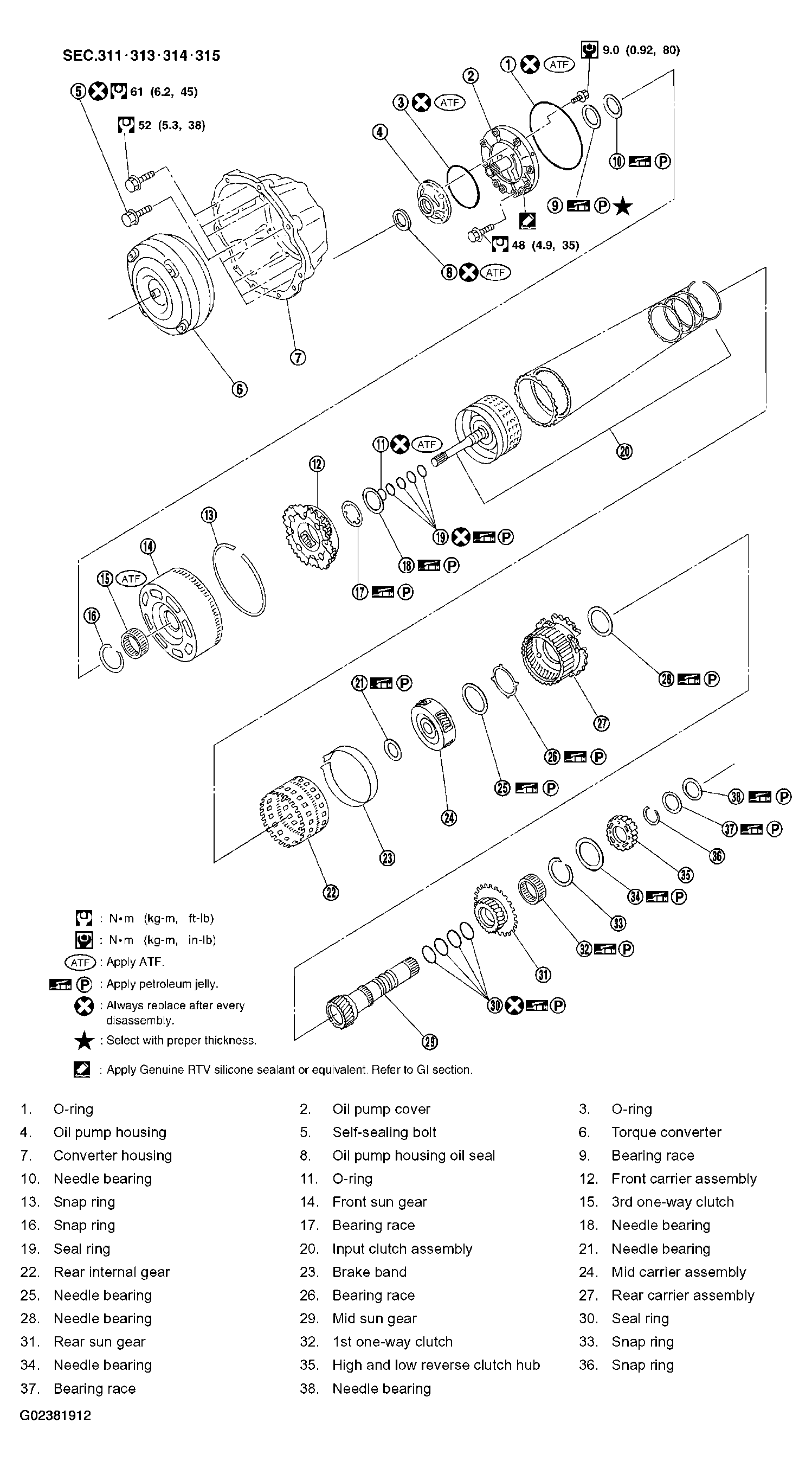

Fig 3: Transmission Assembly Replacement Components With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.
