CONSULT-II Reference Value in Data Monitor Mode

Specification data are reference values.

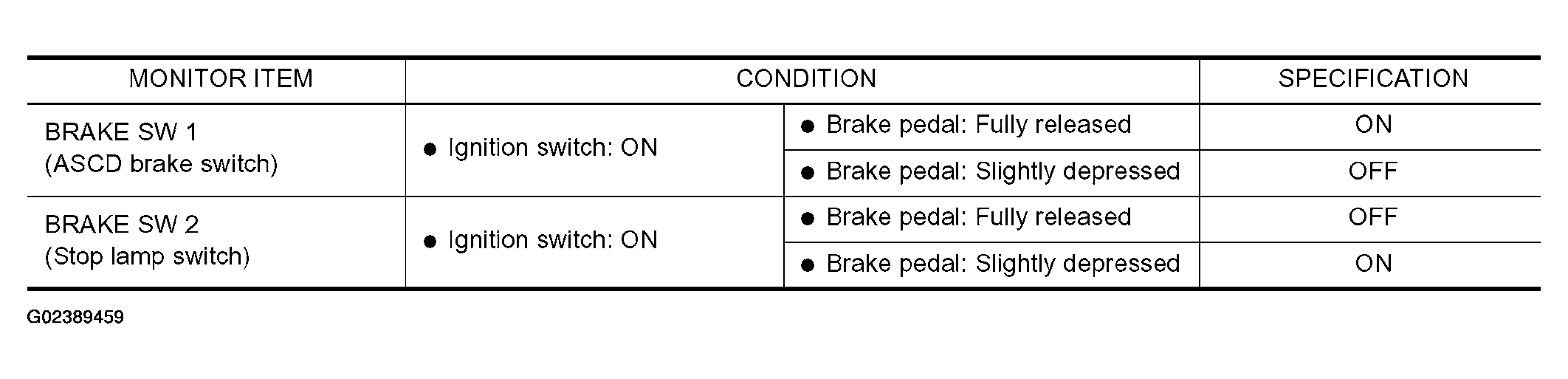

Fig 1: ASCD Brake Switch Specification Data And Reference Values
G02389459Courtesy of NISSAN MOTOR CO., U.S.A.
