Home >> Infiniti >> 2005 >> QX56 AWD >> Repair and Diagnosis >> Engine Performance >> Engine Control System >> Basic Service Procedure >> VIN Registration >> Operation Procedure >> With CONSULT-II

With CONSULT-II

  1. Check the VIN of the vehicle and note it. Refer to "IDENTIFICATION INFORMATION ".
  2. Turn ignition switch ON and engine stopped.
  3. Select "VIN REGISTRATION" in "WORK SUPPORT" mode.
  4. Follow the instruction of CONSULT-II display.

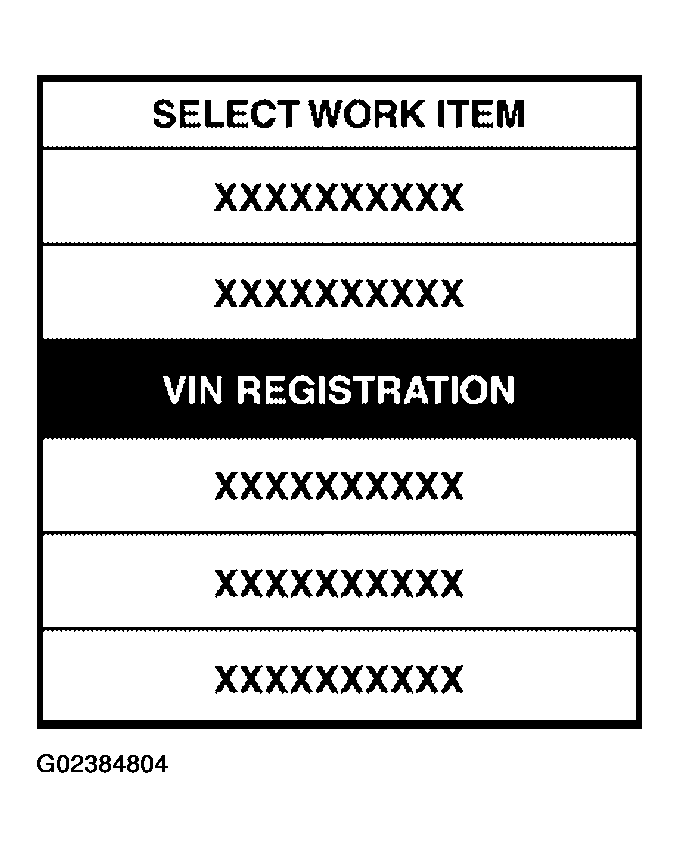

    Fig 1: CONSULT-II Display - VIN REGISTRATION
    G02384804Courtesy of NISSAN MOTOR CO., U.S.A.
