ASCD Steering Switch

  1. Disconnect combination switch (spiral cable) harness connector M102.
  2. Check continuity between combination switch (spiral cable) terminals 14 and 15 with pushing each switch.

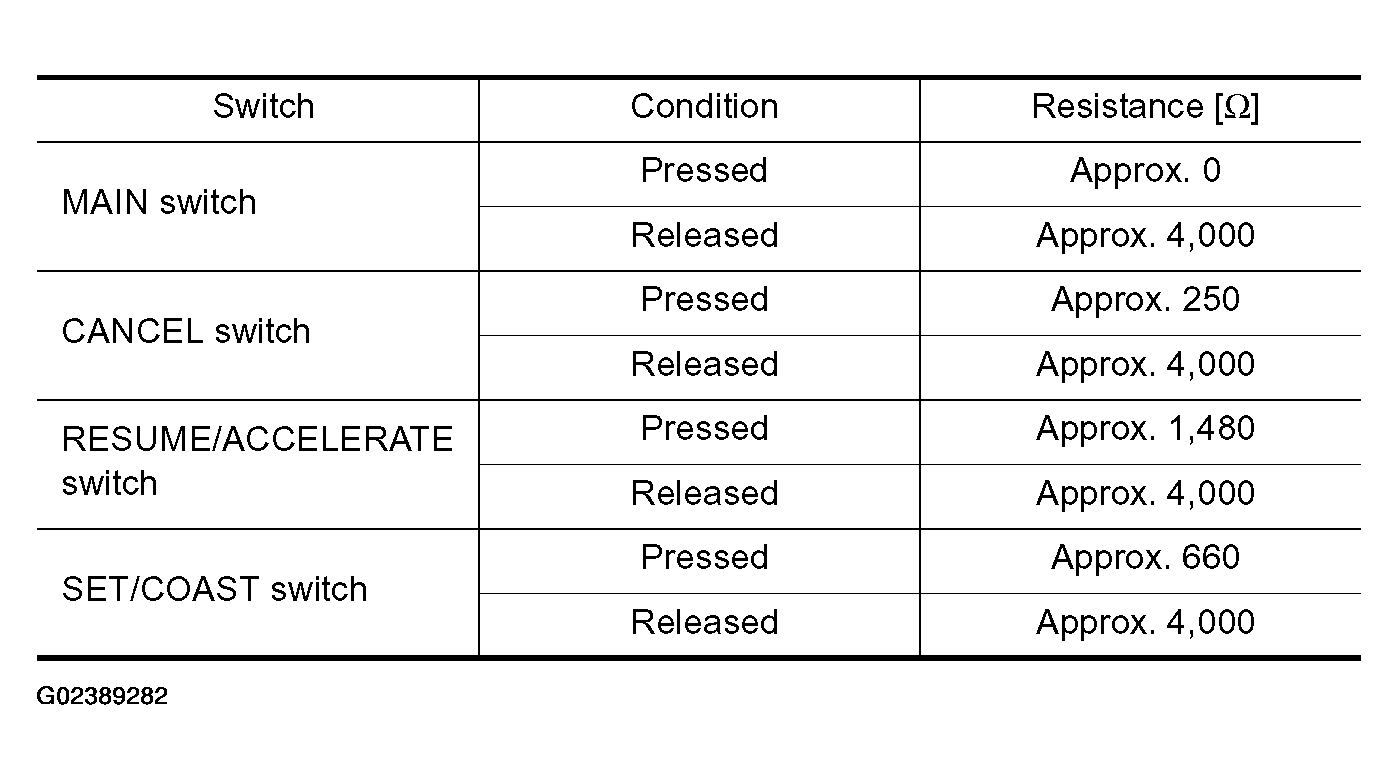

    Fig 1: Combination Switch Terminals Continuity
    G02389282Courtesy of NISSAN MOTOR CO., U.S.A.

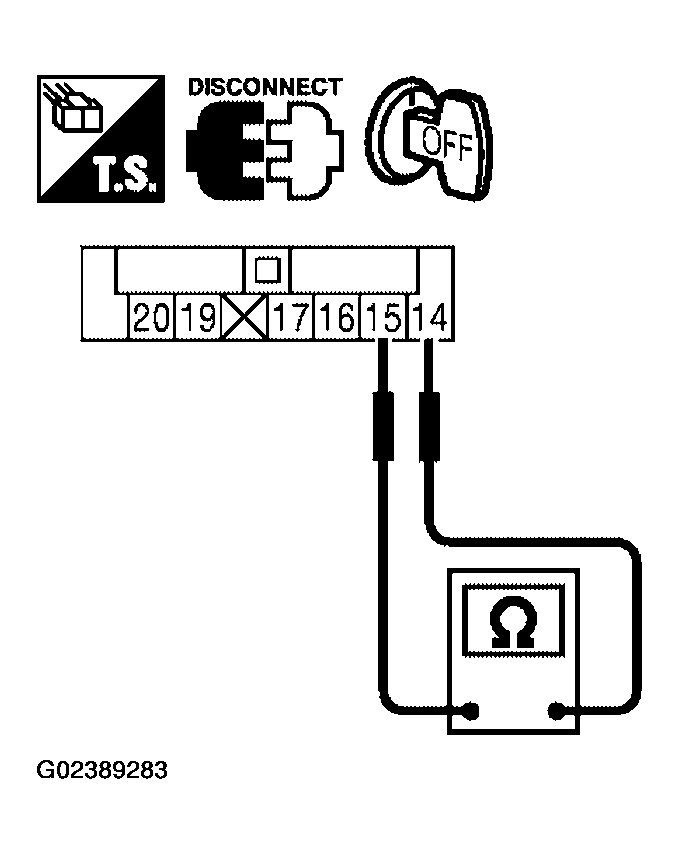

    Fig 2: Checking Continuity Between Combination Switch Terminals 14 And 15
    G02389283Courtesy of NISSAN MOTOR CO., U.S.A.
