Accelerator Pedal Position Sensor

  1. Reconnect all harness connectors disconnected.
  2. Turn ignition switch ON.
  3. Check voltage between ECM terminals 106 (APP sensor 1 signal), 98 (APP sensor 2 signal) and ground under the following conditions.

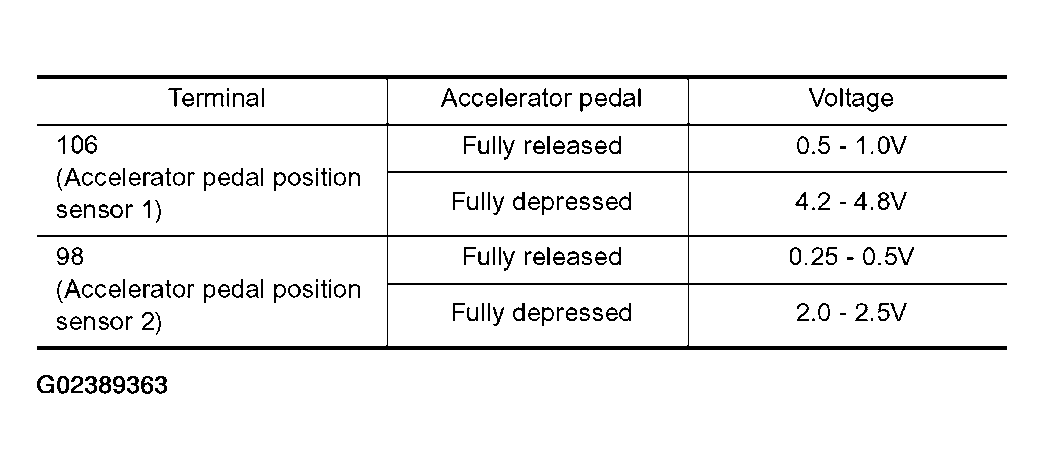

    Fig 1: Accelerator Pedal Position Sensor Terminals Voltage Specification
    G02389363Courtesy of NISSAN MOTOR CO., U.S.A.

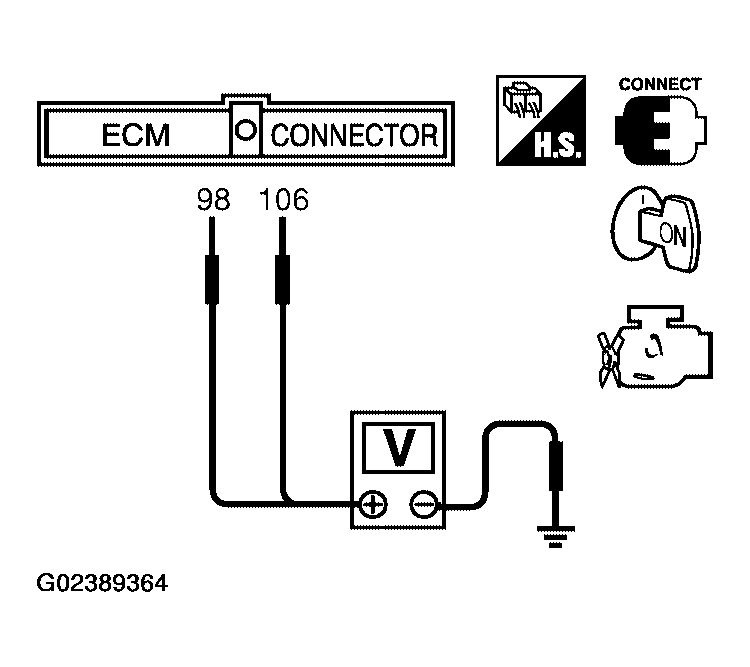

    Fig 2: Checking Voltage Between ECM Terminals And Ground
    G02389364Courtesy of NISSAN MOTOR CO., U.S.A.
  4. If NG, replace accelerator pedal assembly and go to next step.
  5. Perform "ACCELERATOR PEDAL RELEASED POSITION LEARNING ".
  6. Perform "THROTTLE VALVE CLOSED POSITION LEARNING ".
  7. Perform "IDLE AIR VOLUME LEARNING ".
