Accelerator Pedal Position Sensor

  1. Reconnect all harness connectors disconnected.
  2. Turn ignition switch ON.
  3. Check voltage between ECM terminals 106 (APP sensor 1 signal), 98 (APP sensor 2 signal) and ground under the following conditions.

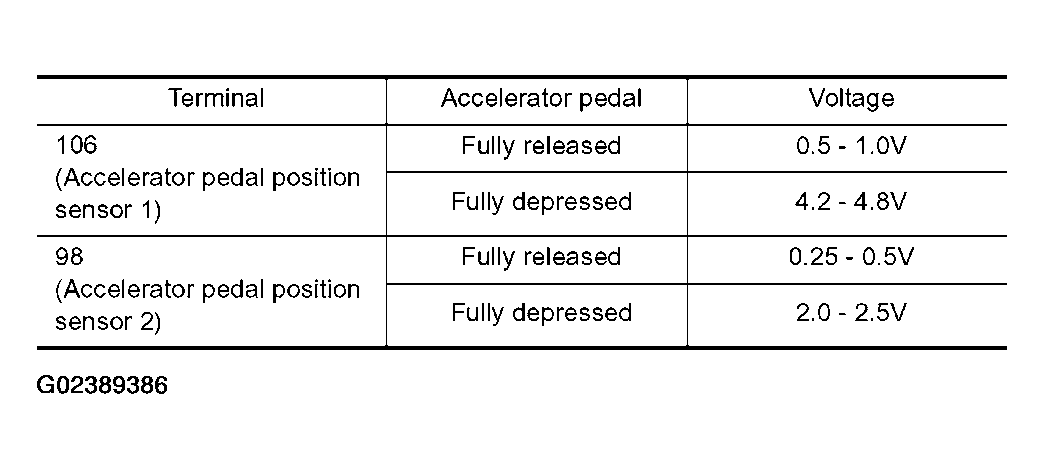

    Fig 1: ECM TERMINALS 106 (APP SENSOR 1 SIGNAL), 98 (APP SENSOR 2 SIGNAL) AND GROUND VOLTAGE SPECIFICATION
    G02389386Courtesy of NISSAN MOTOR CO., U.S.A.

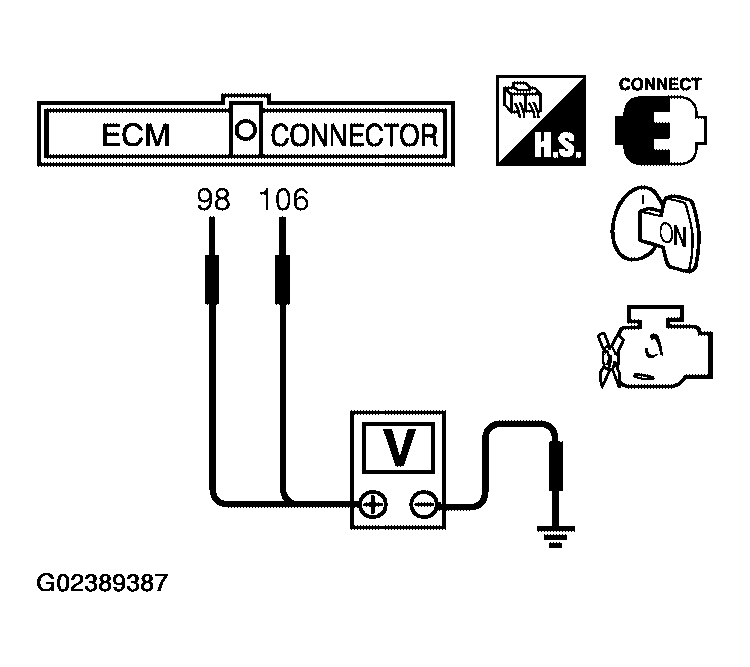

    Fig 2: Checking Voltage Between ECM Terminals 106 (APP Sensor 1 Signal), 98 (APP Sensor 2 Signal) And Ground
    G02389387Courtesy of NISSAN MOTOR CO., U.S.A.
  4. If NG, replace accelerator pedal assembly and go to next step.
  5. Perform "ACCELERATOR PEDAL RELEASED POSITION LEARNING ".
  6. Perform "THROTTLE VALVE CLOSED POSITION LEARNING ".
  7. Perform "IDLE AIR VOLUME LEARNING ".
