Component Inspection: Condenser

  1. Turn ignition switch OFF.
  2. Disconnect condenser harness connector.
  3. Check resistance between condenser terminals 1 and 2.
    CONDENSER TERMINAL RESISTANCE SPECIFICATION

    Resistance Above 1 MΩ at 25°C (77°>F)

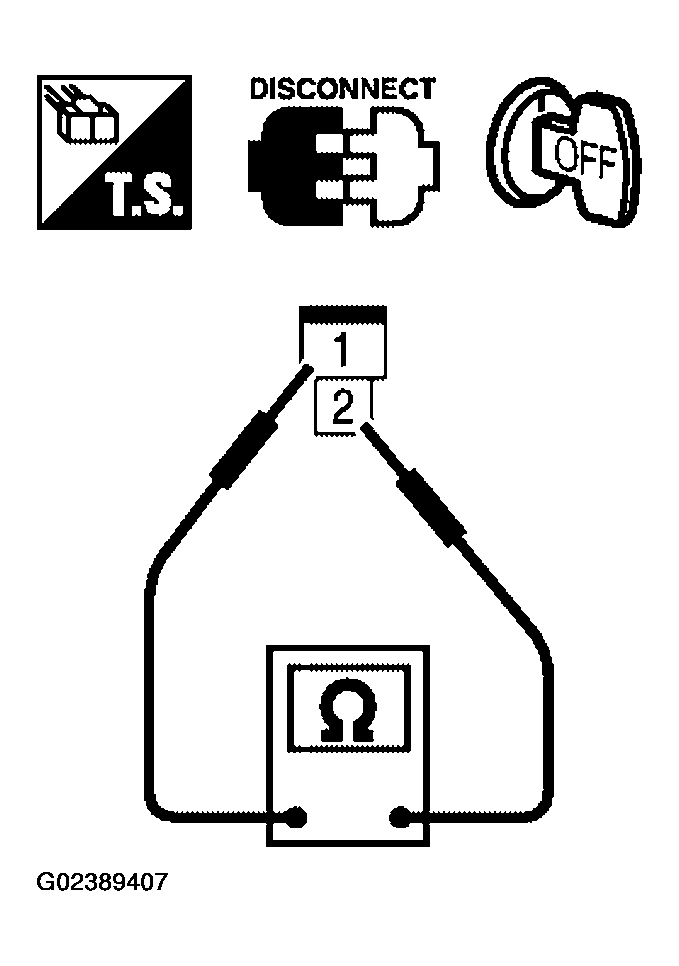

    Fig 1: Checking Resistance Between Condenser Terminals 1 And 2
    G02389407Courtesy of NISSAN MOTOR CO., U.S.A.
