Home >> Infiniti >> 2005 >> QX56 AWD >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Fuel System >> Fuel Tank >> Removal and Installation >> Notes

Removal and Installation: Notes

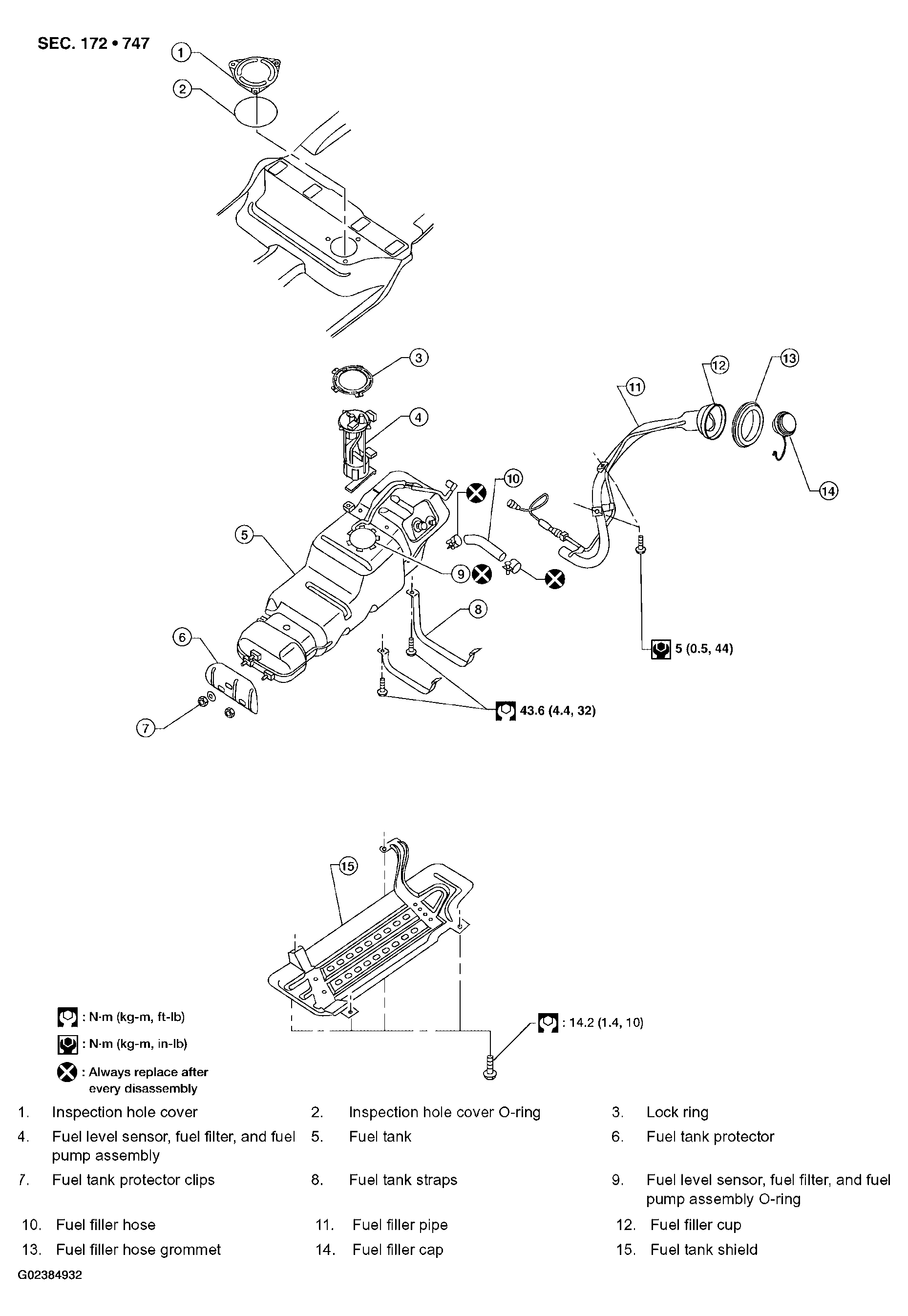

Fig 1: Fuel Tank Replacement Components With Torque Specifications

G02384932

Courtesy of NISSAN MOTOR CO., U.S.A.
