CONSULT-II Function (ENGINE): Function

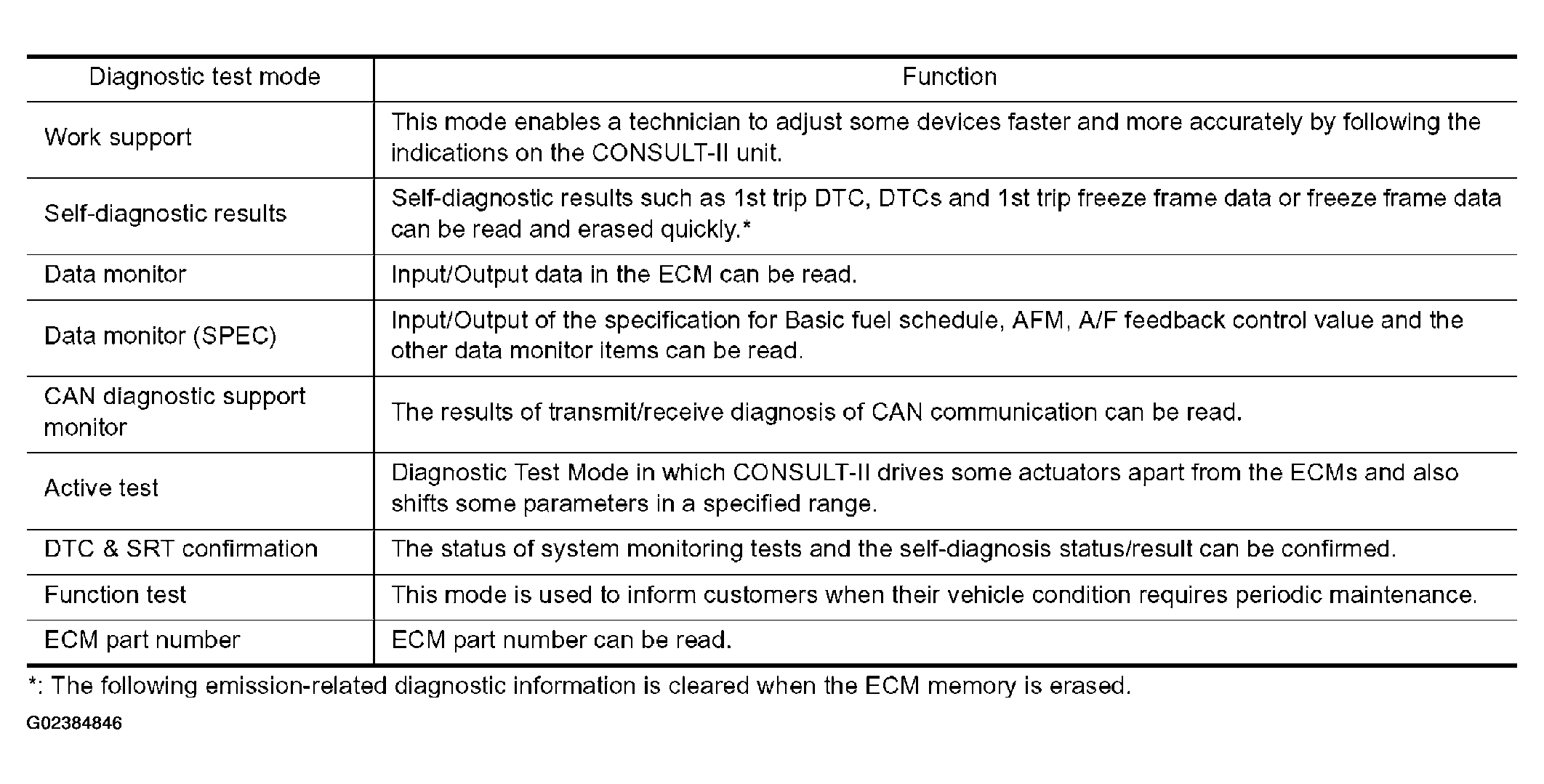

Fig 1: Diagnostic Test Mode - Consult-II Function

Courtesy of NISSAN MOTOR CO., U.S.A.

• Diagnostic trouble codes
• 1st trip diagnostic trouble codes
• Freeze frame data
• 1st trip freeze frame data
• System readiness test (SRT) codes
• Test values
