Component Description

When the brake pedal is depressed, ICC brake switch is turned OFF and stop lamp switch is turned ON. ECM detects the state of the brake pedal by this input of two kinds (ON/OFF signal) Refer to "DESCRIPTION " for the ICC function.

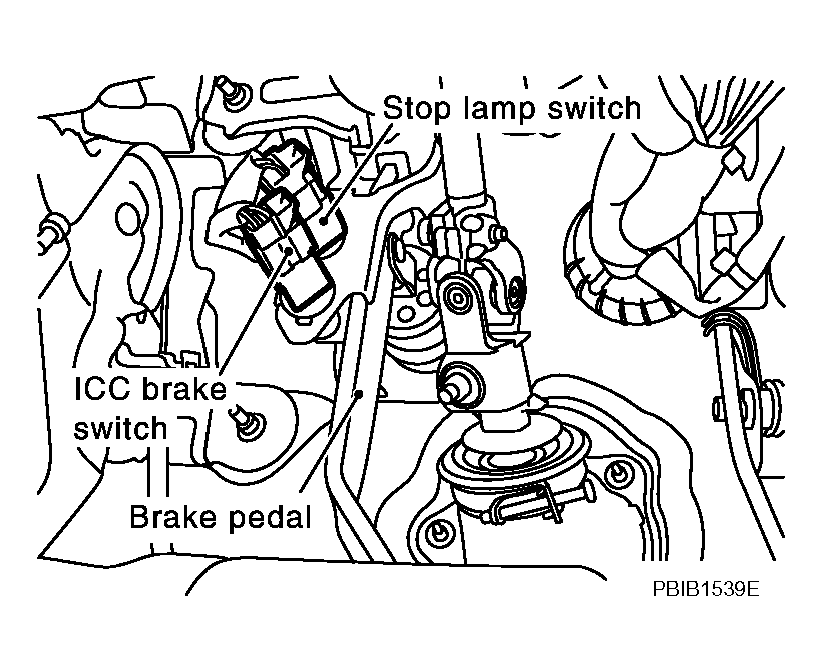

Fig 1: Identifying Location Of ICC Brake Switch

Courtesy of NISSAN MOTOR CO., U.S.A.
