Stop Lamp Switch

  1. Turn ignition switch OFF.
  2. Disconnect stop lamp switch harness connector.
  3. Check harness continuity between stop lamp switch terminals 1 and 2 under the following conditions.
    CONTINUITY CONDITIONS

    Condition Continuity
    Brake pedal: Fully released. Should not exist
    Brake pedal: Slightly depressed. Should exist
  4. If NG, adjust stop lamp switch installation, refer to "BRAKE PEDAL ", and perform step  3 again.

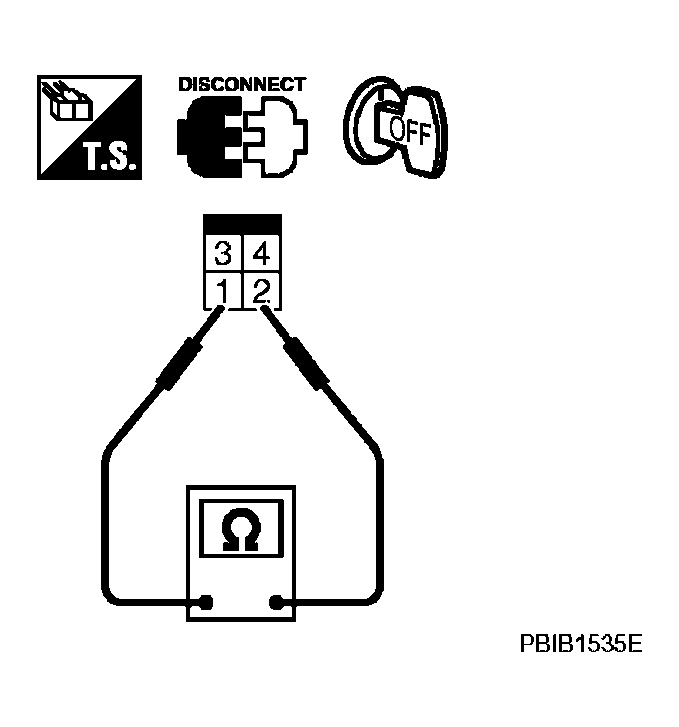

    Fig 1: Identifying Harness Continuity Between Stop Lamp Switch Terminals 1 And 2
    G04075261Courtesy of NISSAN MOTOR CO., U.S.A.
