Home >> Infiniti >> 2006 >> FX45 >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System - Introduction (VK45DE) >> Basic Service Procedure >> Fuel Pressure Check >> Fuel Pressure Release >> With CONSULT-II

With CONSULT-II

  1. Turn ignition switch ON.
  2. Perform "FUEL PRESSURE RELEASE" in "WORK SUPPORT" mode with CONSULT-II.

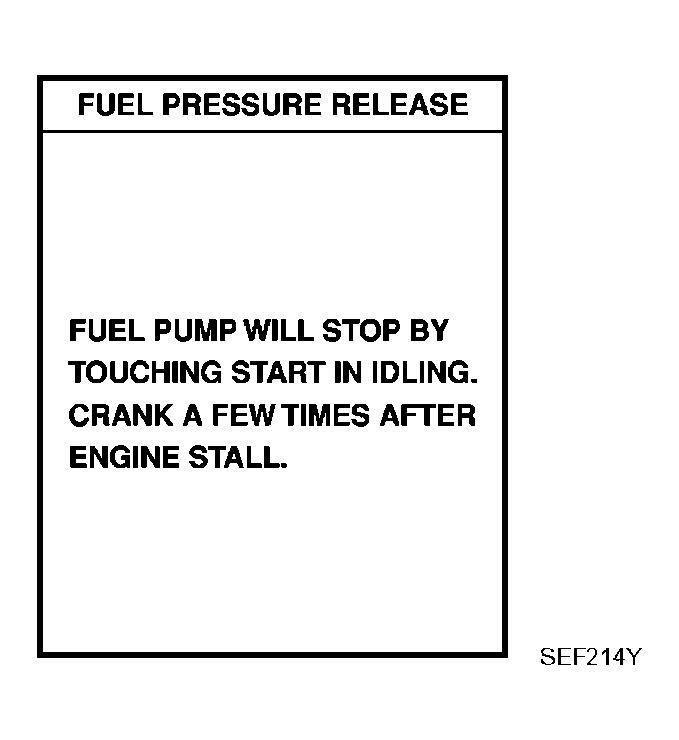

    Fig 1: CONSULT-II Display - FUEL PRESSURE RELEASE
    G04074553Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Start engine.
  4. After engine stalls, crank it two or three times to release all fuel pressure.
  5. Turn ignition switch OFF.
