Removal and Installation: Installation

Set key interlock cable (2) to key cylinder (1) and install holder (A).
Clamp key interlock cable (2) and fix to key interlock cable (2) with clips (B).
Turn ignition key to "LOCK" position.
Set selector lever to "P" position.

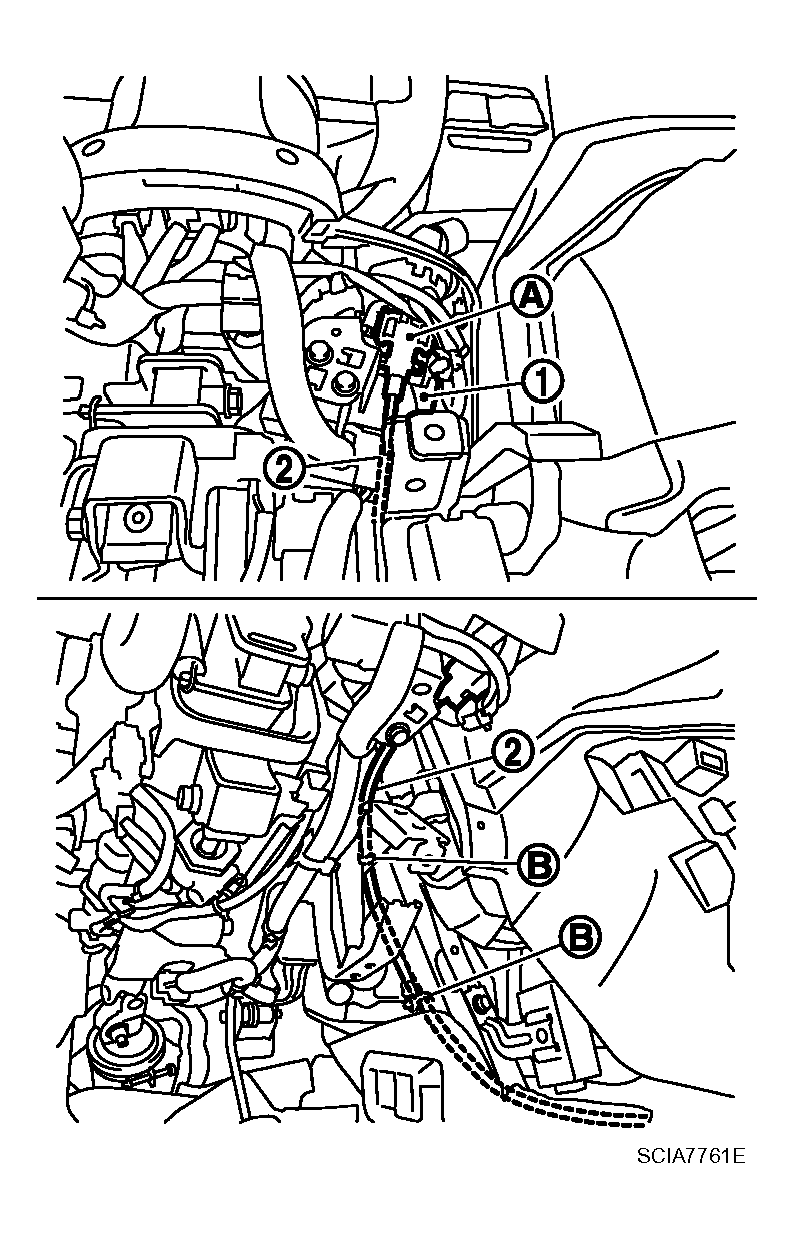

Fig 1: Identifying Holder
Courtesy of NISSAN MOTOR CO., U.S.A.
Insert interlock rod into adjuster holder.
Install casing cap to bracket.
Move slider in order to fix adjuster holder to interlock rod.
CAUTION: Do not touch adjacent parts of key interlock cable when slider is being held.
Insert slider into key interlock rod straightly.

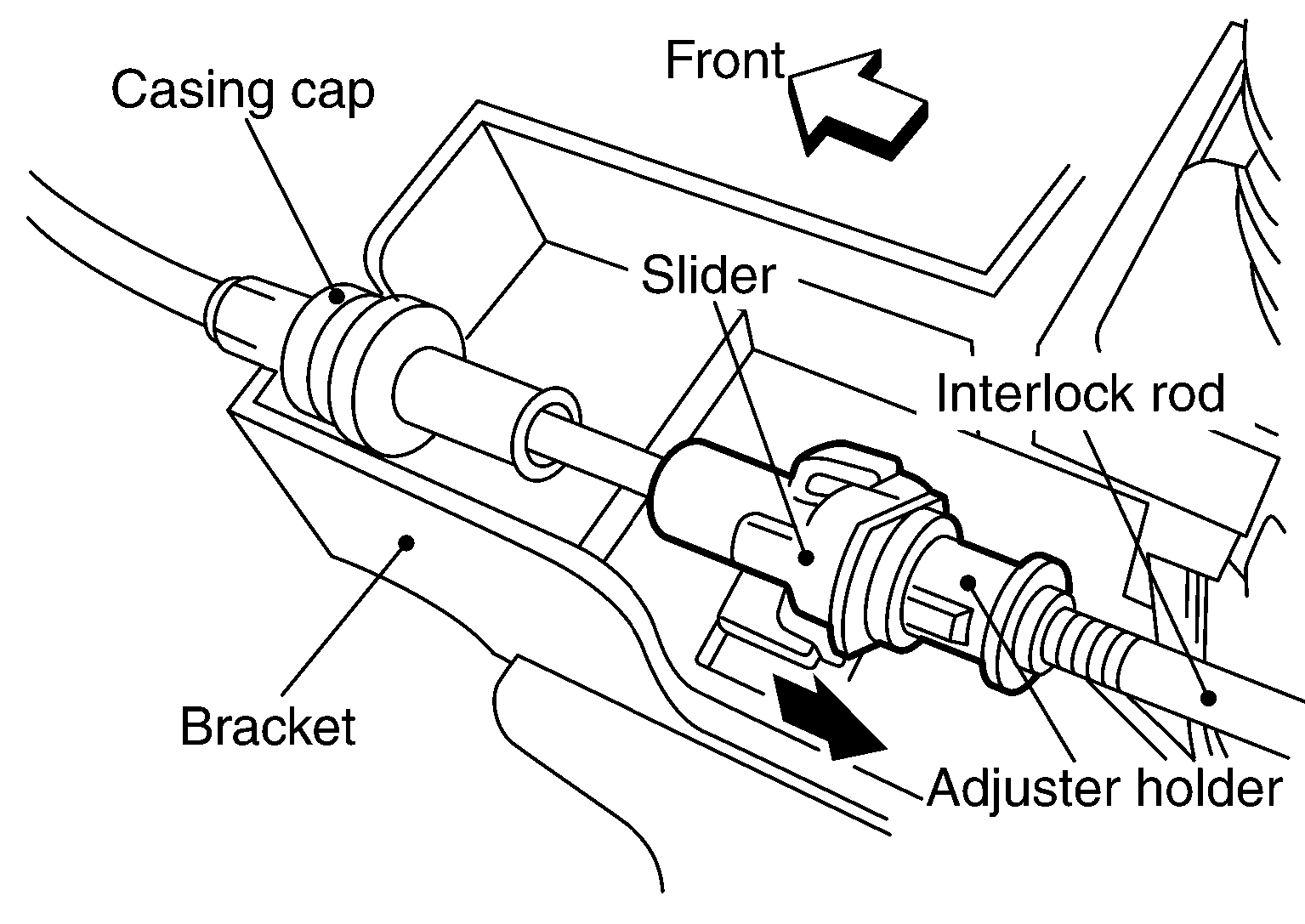

Fig 2: Identifying Interlock Rod Into Adjuster Holder
Courtesy of NISSAN MOTOR CO., U.S.A.
