Direction Display

Push "COMP" switch (1) when ignition switch is in "ON" or "START" position. The direction will be displayed.

Pushing "COMP" switch (1) a second time will turn off the display (2).

NOTE:
  • Do not install the ski rack, antenna, etc. which are attached to the vehicle by means of a magnet. They affect the operation of the compass.

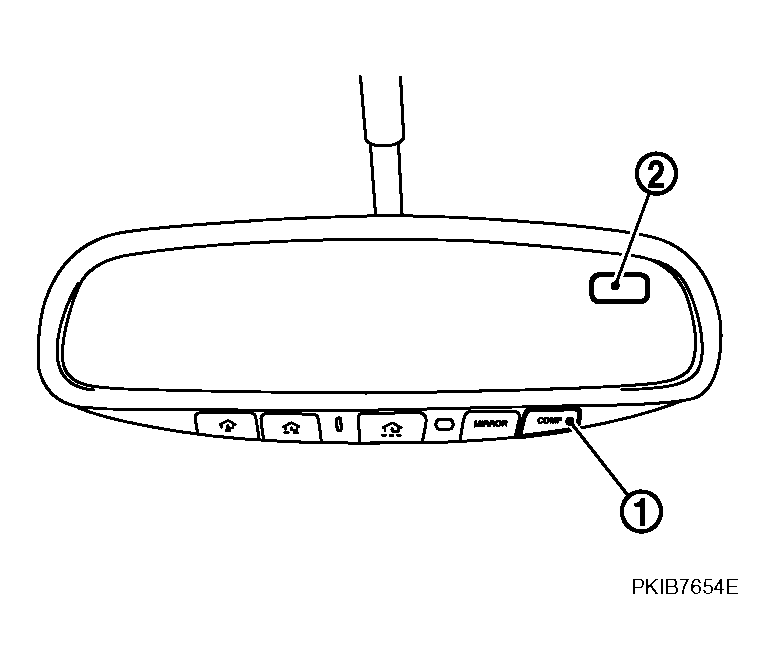

    Fig 1: Identifying COMP Switch
    G04140690Courtesy of NISSAN MOTOR CO., U.S.A.
  • The compass may not indicate the correct compass point in tunnels or while driving up or down a steep hill. (The compass returns to the correct compass point when the vehicle moves to an area where the geomagnetism is stabilized.)
  • When cleaning the mirror, use a paper towel or similar material dampened with glass cleaner. Do not spray glass cleaner directly on the mirror as that may cause the liquid cleaner to enter the mirror housing.
