System Description: Notes

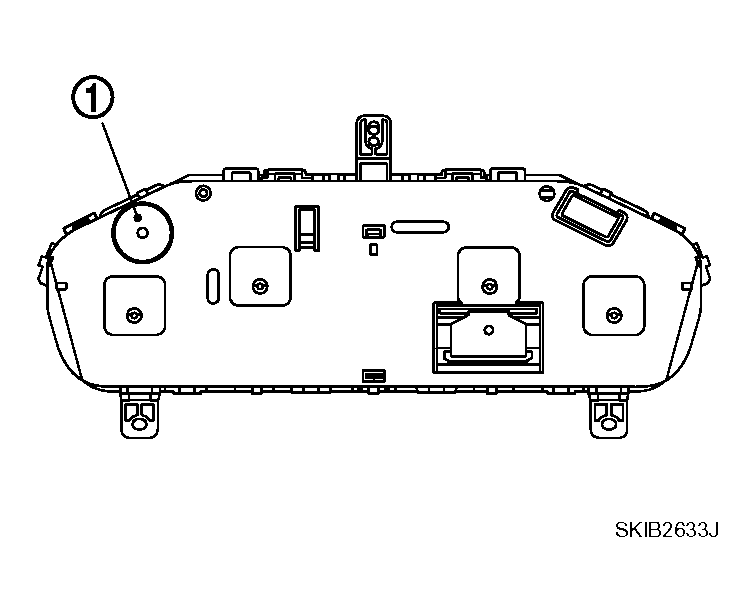

- The buzzer (1) for warning chime system is installed in the combination meter.
- The buzzer sounds when the combination meter receives buzzer output signal from each unit through unified meter and A/C amp.
Courtesy of NISSAN MOTOR CO., U.S.A.
