Home >> Infiniti >> 2006 >> M35 Base >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System (VQ35DE) - Introduction >> Basic Service Procedure >> VIN Registration >> Operation Procedure >> With CONSULT-II

With CONSULT-II

  1. Check the VIN of the vehicle and note it. Refer to "IDENTIFICATION INFORMATION ".
  2. Turn ignition switch ON and engine stopped.
  3. Select "VIN REGISTRATION" in "WORK SUPPORT" mode.
  4. Follow the instruction of CONSULT-II display.

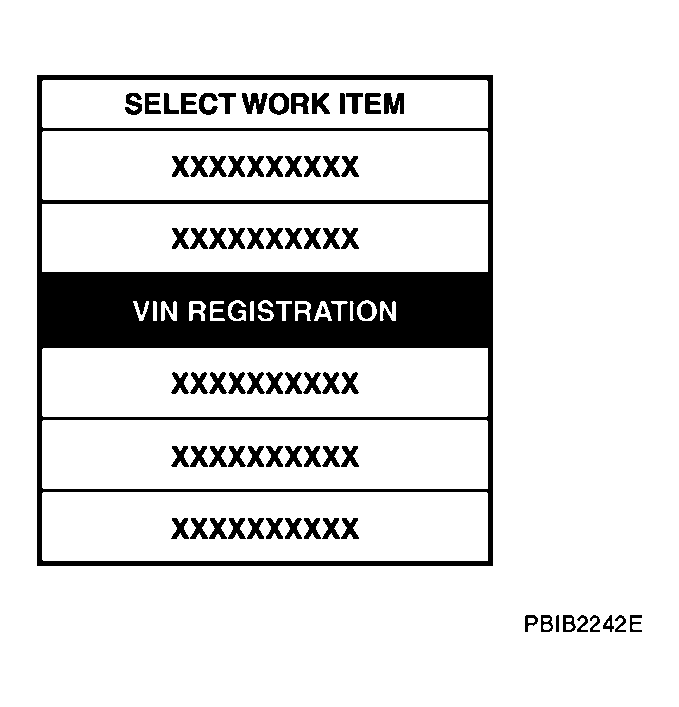

Fig 1: Consult-II Display - Select Work Item
G04138221Courtesy of NISSAN MOTOR CO., U.S.A.
