2WD Models

  1. Loosen nut (2) of pivot pin (1).
  2. Place PNP switch and selector lever in "P" position.
  3. While pressing lower lever (3) toward rear of vehicle (in "P" position direction), tighten nut (2) to specified torque.

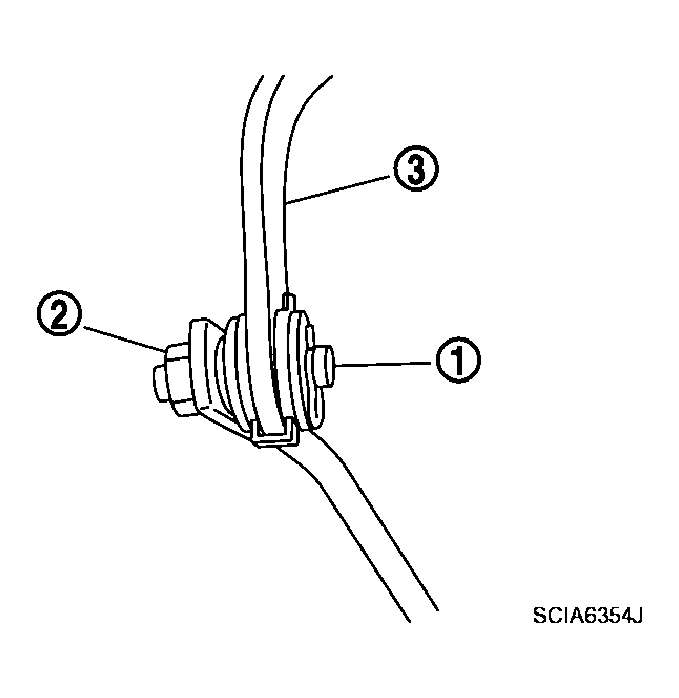

    Fig 1: Adjusting A/T Position - 2WD Models
    G04139270Courtesy of NISSAN MOTOR CO., U.S.A.

    Refer to "CONTROL ROD COMPONENTS (2WD MODELS) ".
