AWD System
>>
System Diagram
>>
Notes
System Diagram: Notes

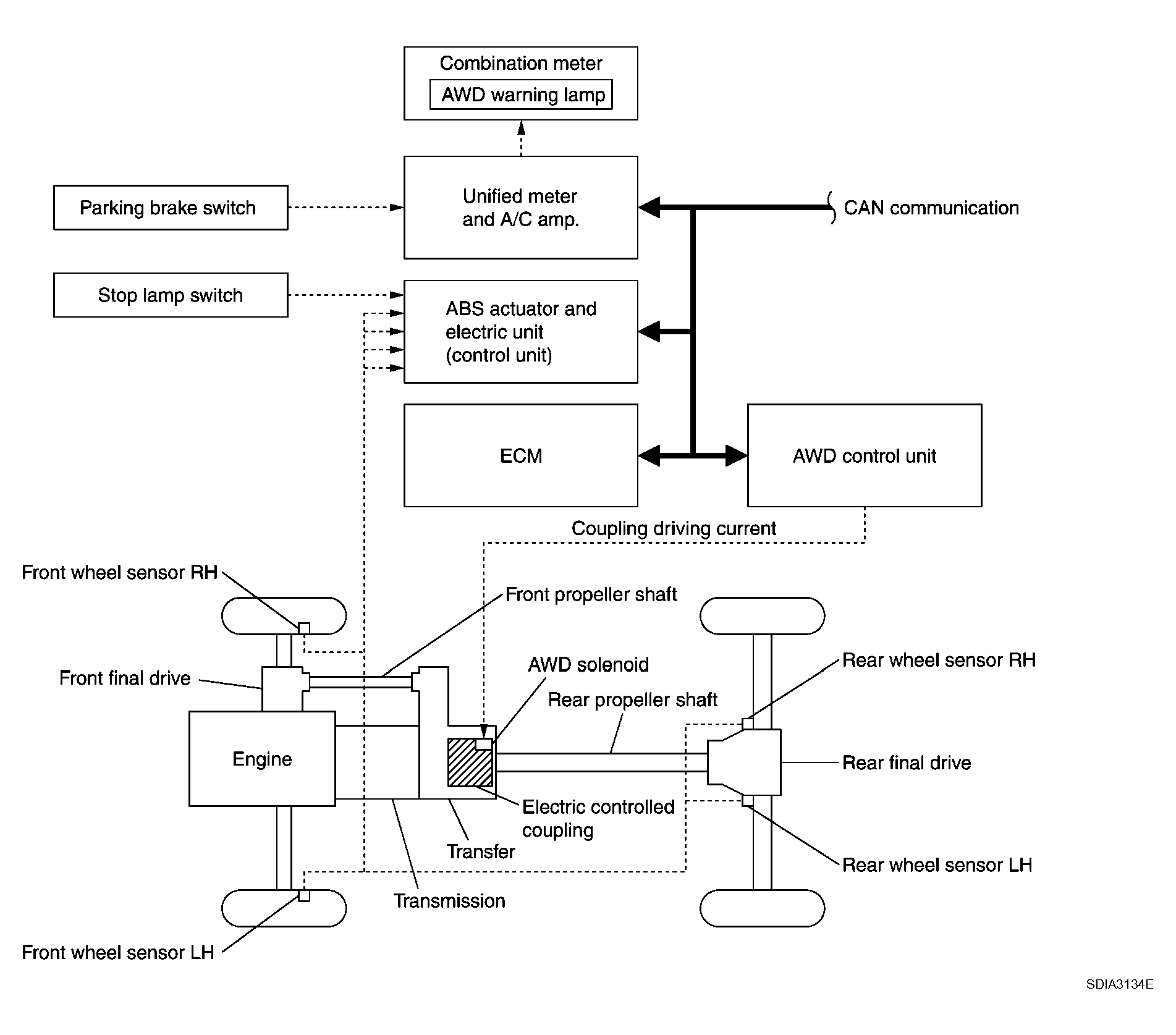

Fig 1: System Diagram - AWD System
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
