Mainshaft Assembly

  1. Install needle bearing to mainshaft.
    CAUTION: Apply ATF to periphery of needle bearing.
  2. Install sprocket and electric controlled coupling to mainshaft.
  3. Install spacer to main shaft.

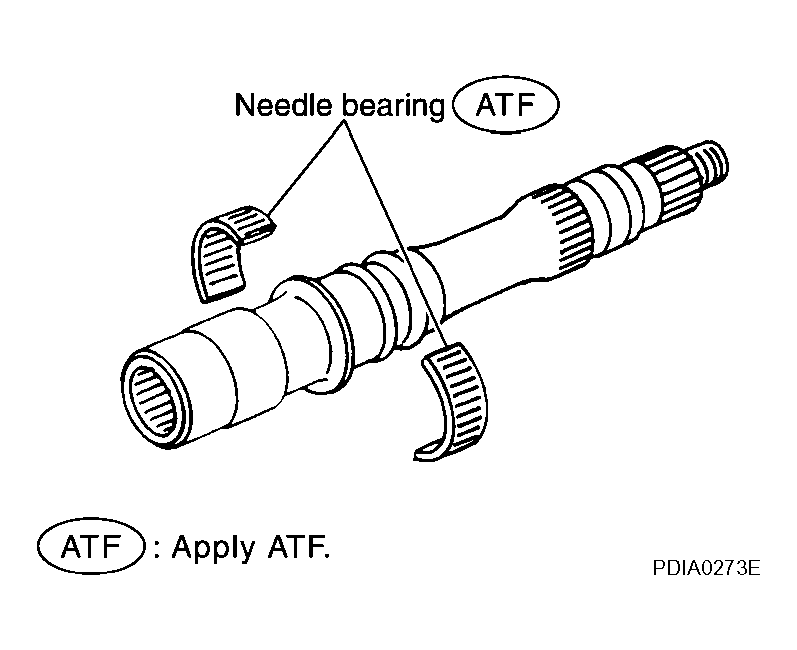

    Fig 1: Identifying Needle Bearing To Mainshaft
    G04144562Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Install snap ring to mainshaft.
    CAUTION: Do not reuse snap ring.
  5. Install mainshaft assembly to rear case, then install front case and rear case. Refer to , "FRONT CASE AND REAR CASE ".

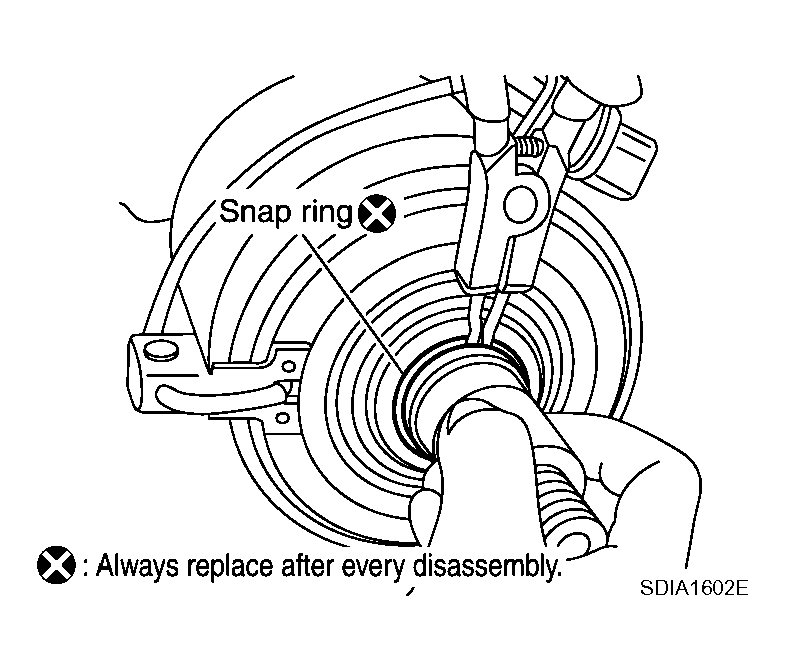

Fig 2: Identifying Snap Ring And Mainshaft
G04144563Courtesy of NISSAN MOTOR CO., U.S.A.
