Control Device Components (AWD Models)

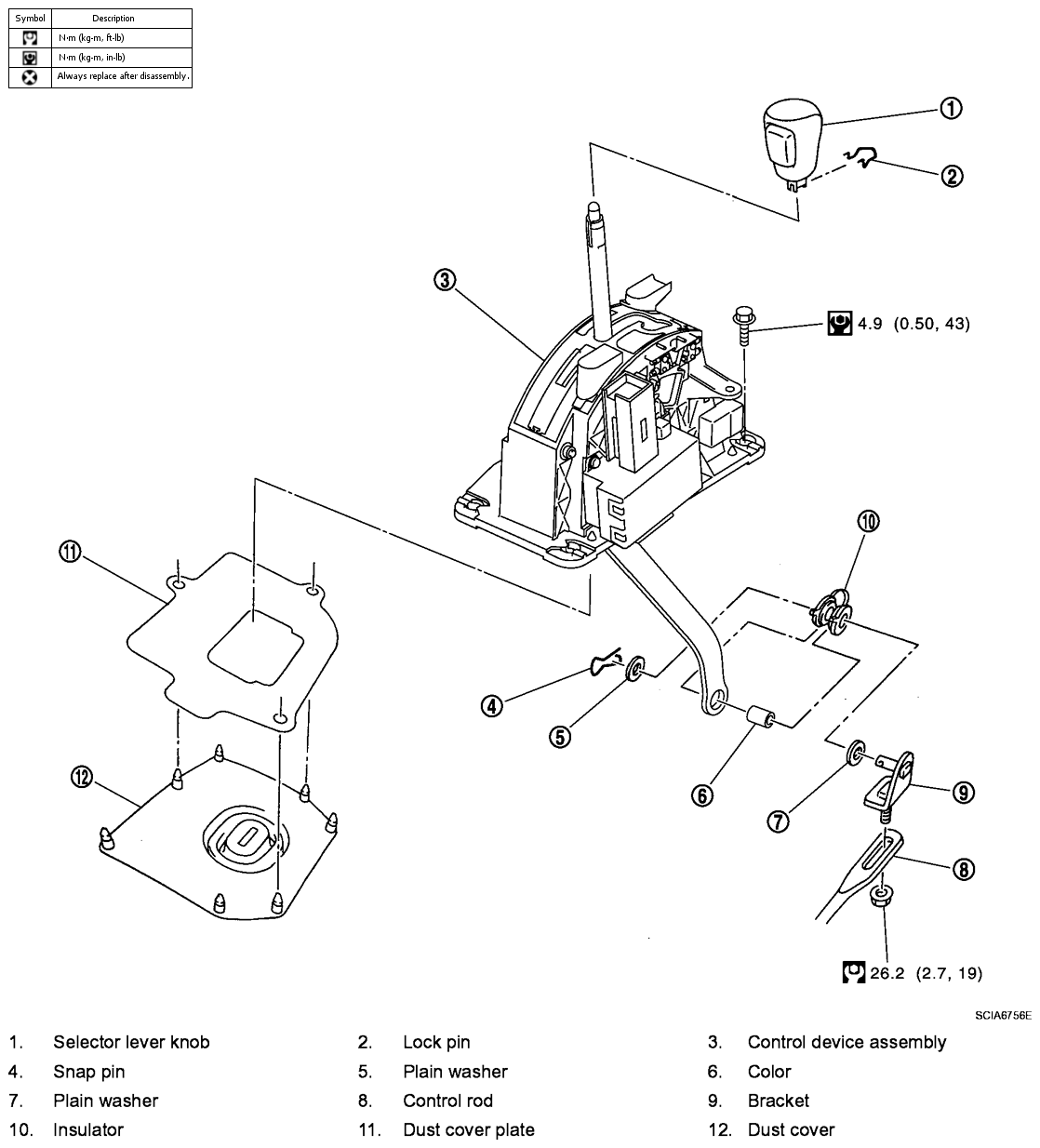

Fig 1: Control Device Replacement Components With Torque Specifications (AWD Models)

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to GENERAL INFORMATION to make sure icons (symbol marks) in the figure. Refer to "COMPONENTS ".
