Check Fuel Level Sensor Unit

For removal, refer to "FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY ".

Check resistance between terminals 5 and 6.

RESISTANCE SPECIFICATIONS

Terminal		Float position [mm (in)]		Resistance value [Ω]
5	6	Full (3)^*2	Approx. 78 (3.1)	Approx. 6
		1/2 (2)	Approx. 200 (7.87)	Approx. 33
		Empty (1)^*2	Approx. 341 (13.43)	Approx. 90
1 and 2 When float rod is in contact with stopper.

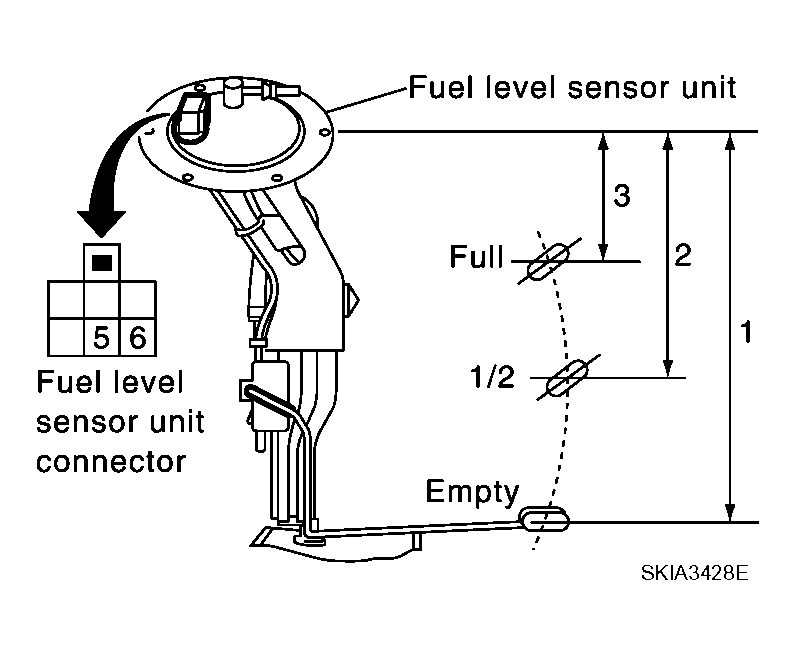

Fig 1: Identifying Resistance Between Terminals 5 And 6

Courtesy of NISSAN MOTOR CO., U.S.A.
