Home >> Infiniti >> 2006 >> Q45 >> Repair and Diagnosis >> Engine Mechanical >> Engine Lubrication System >> Engine Oil >> Inspection >> Engine Oil Level

Engine Oil Level

NOTE: Before starting engine, check the engine oil level. If engine is already started, stop it and allow 15 minutes before checking.
  1. Put vehicle horizontally.
  2. Pull out oil level gauge and wipe it clean.
  3. Insert oil level gauge and make sure that the engine oil level is within the range shown in Fig 1 .
  4. If it is out of range, adjust it.

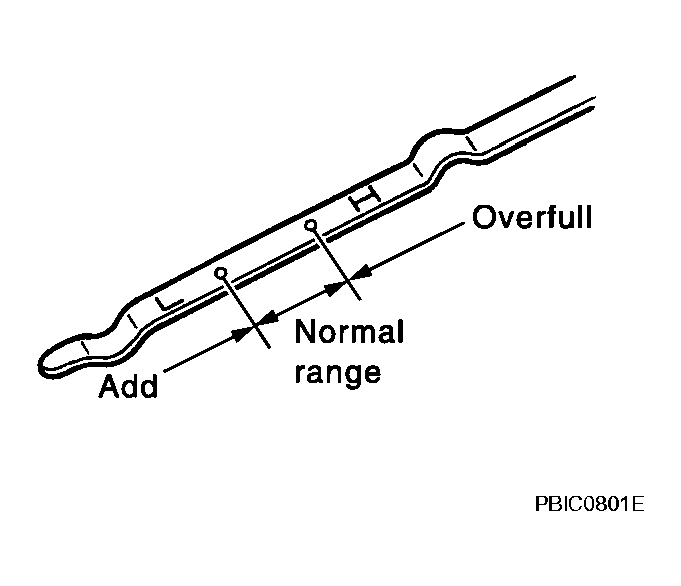

    Fig 1: Inspecting Engine Oil Level
    G04126854Courtesy of NISSAN MOTOR CO., U.S.A.
