Removal and Installation: Removal

  1. Turn the ignition switch OFF and disconnect the battery cable from the negative terminal.
  2. Remove the trunk side finisher. Refer to "REMOVAL AND INSTALLATION ".
  3. Disconnect the two active damper suspension control unit connectors.
  4. Remove the active damper suspension control unit bolts.
  5. Remove the active damper suspension control unit (1).

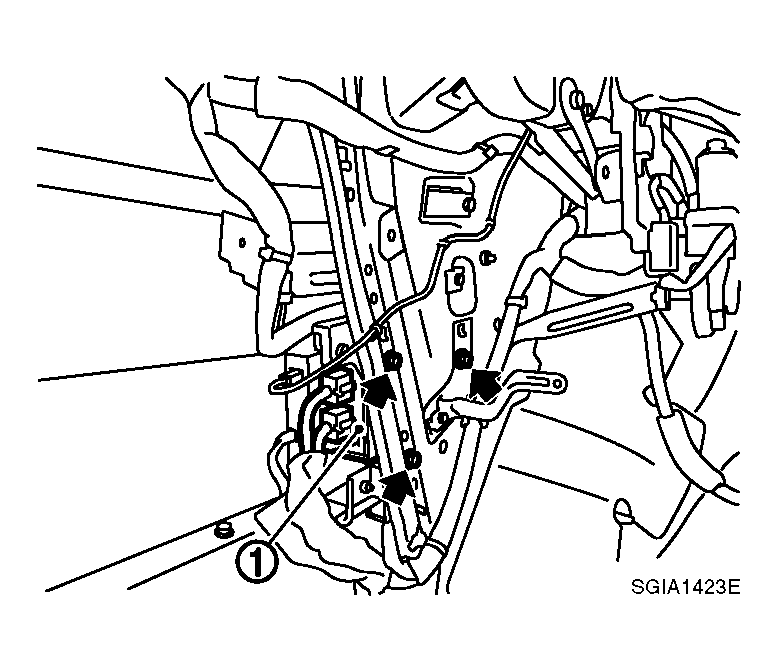

    Fig 1: Locating Active Damper Suspension Control Unit
    G04128846Courtesy of NISSAN MOTOR CO., U.S.A.
