Repair and Diagnosis
>>
Transmission
>>
Automatic Transmission
>>
A/T Shift Lock System
>>
Component Inspection
>>
Key Lock Solenoid
>>
Key Switch
Key Switch
Check continuity between terminals of the key switch and key lock solenoid harness connector.
TERMINAL CONTINUITY CHART
Condition
Connector
Terminal
Continuity
Key inserted
M64
3 - 4
Yes
Key withdrawn
No

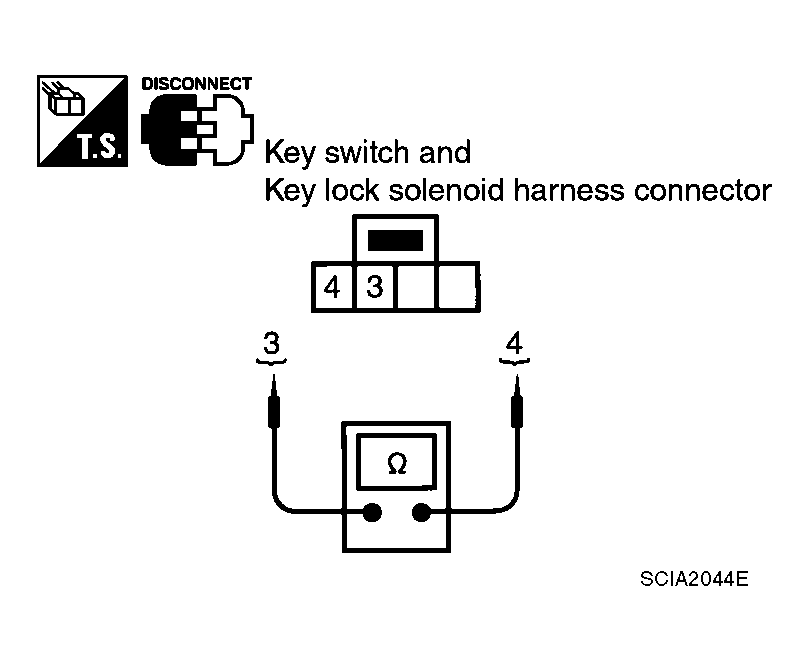

Fig 1: Checking Continuity Between Terminals Of Key Switch And Key Lock Solenoid Harness Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
