Control Device Removal and Installation
>>
Control Device Components
Control Device Components

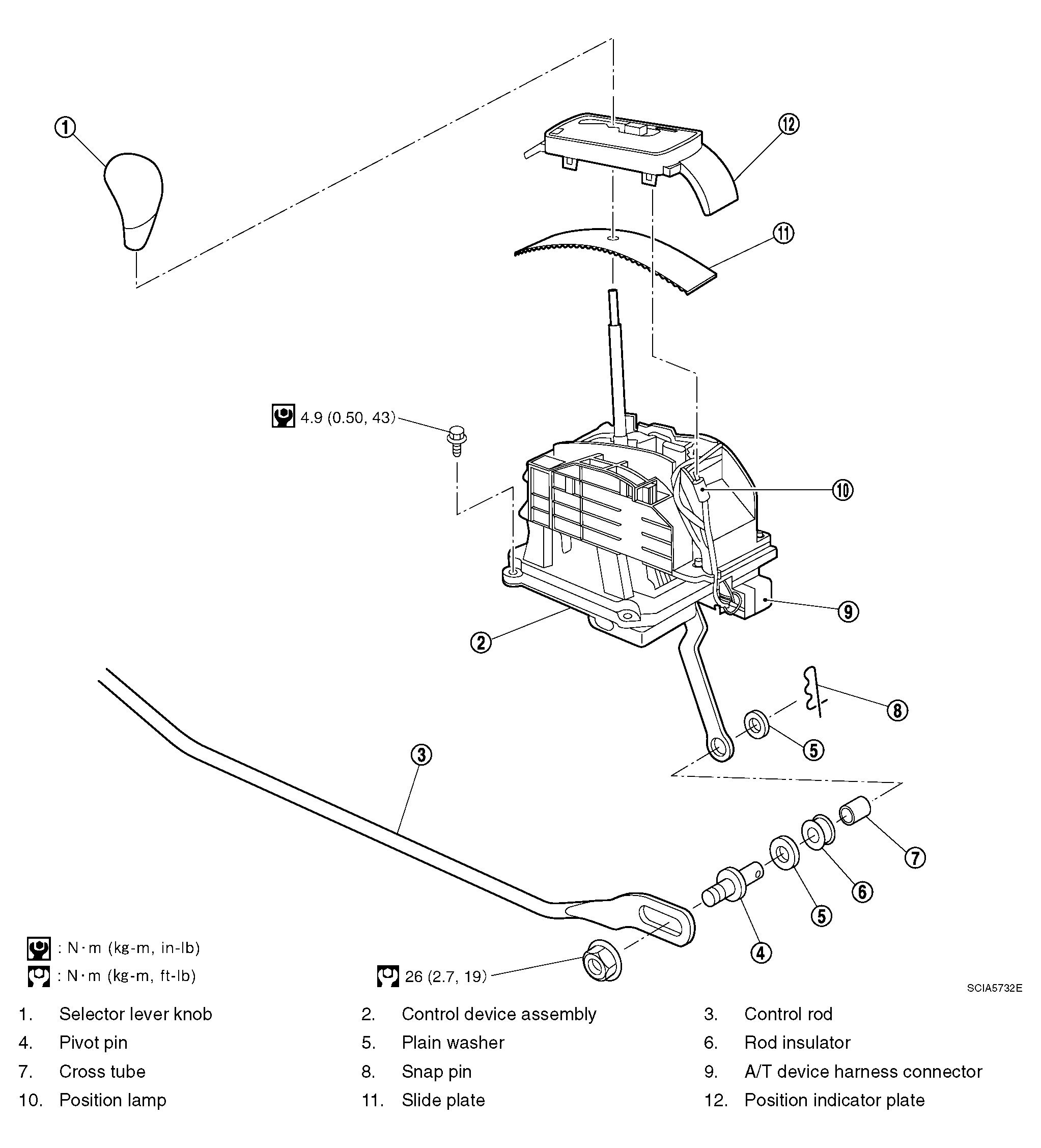

Fig 1: Control Device Replacement Components With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
