Control Device Removal and Installation: Removal

  1. Disconnect lower lever of control device and control rod.
  2. Remove A/T console finisher. Refer to "INSTRUMENT PANEL ASSEMBLY ".
  3. Remove console box assembly. Refer to "INSTRUMENT PANEL ASSEMBLY ".
  4. Remove rear ventilator duct No.2. Refer to "REMOVAL OF REAR VENTILATOR DUCTS ".

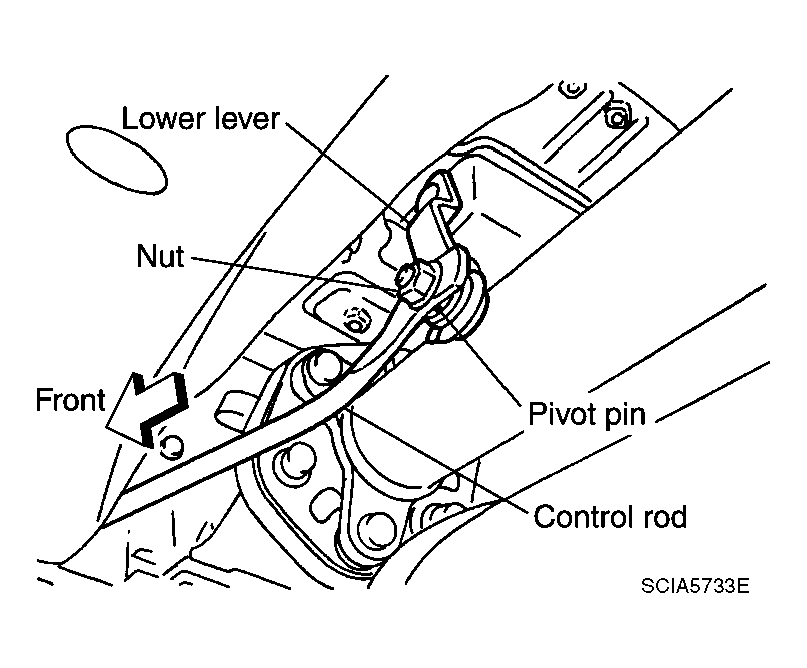

    Fig 1: Identifying Lower Lever Of Control Device And Control Rod
    G04128113Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Disconnect A/T device harness connector.

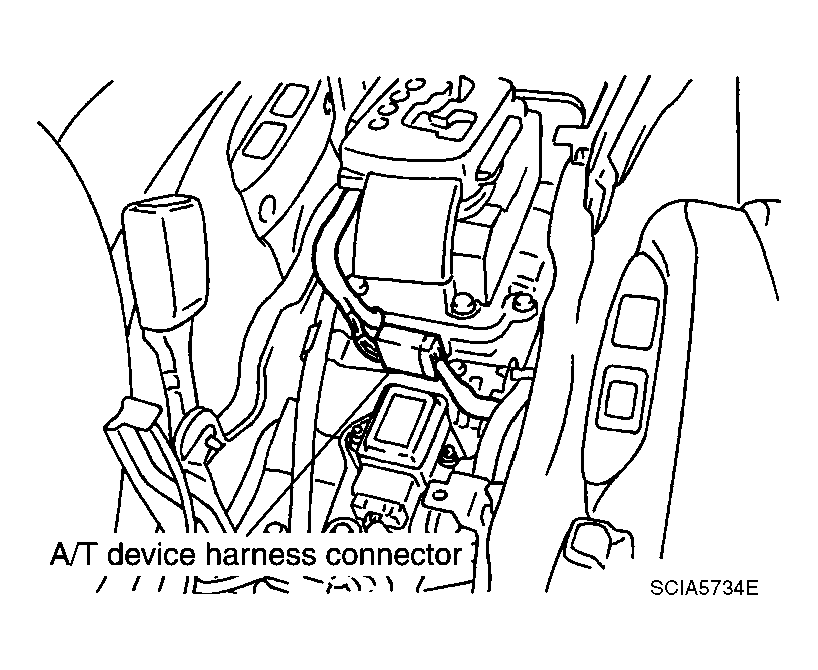

    Fig 2: Identifying A/T Device Harness Connector
    G04128114Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Remove control device assembly.

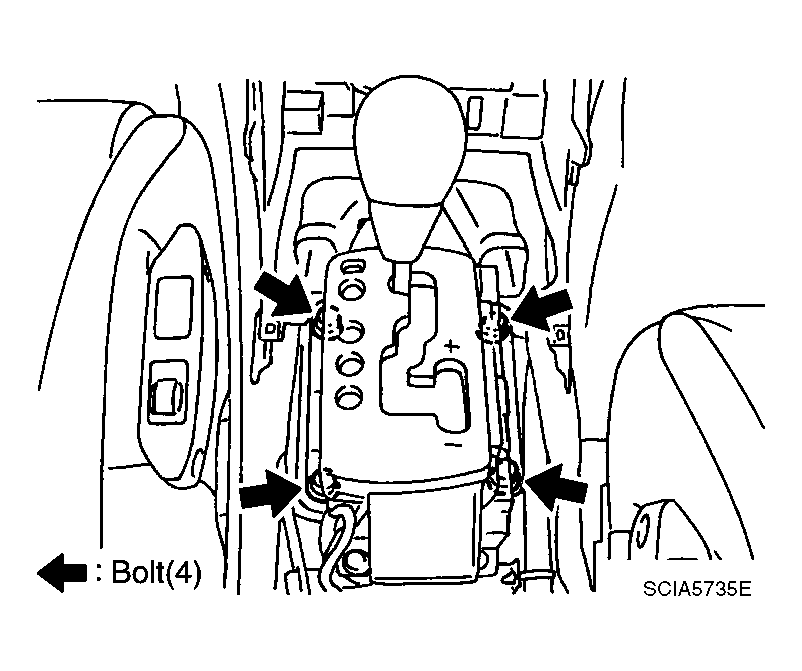

    Fig 3: Identifying Control Device Assembly
    G04128115Courtesy of NISSAN MOTOR CO., U.S.A.
