Home >> Infiniti >> 2006 >> Q45 >> Repair and Diagnosis >> Transmission >> Automatic Transmission >> Transmission Assembly >> Removal and Installation >> Components

Removal and Installation: Components

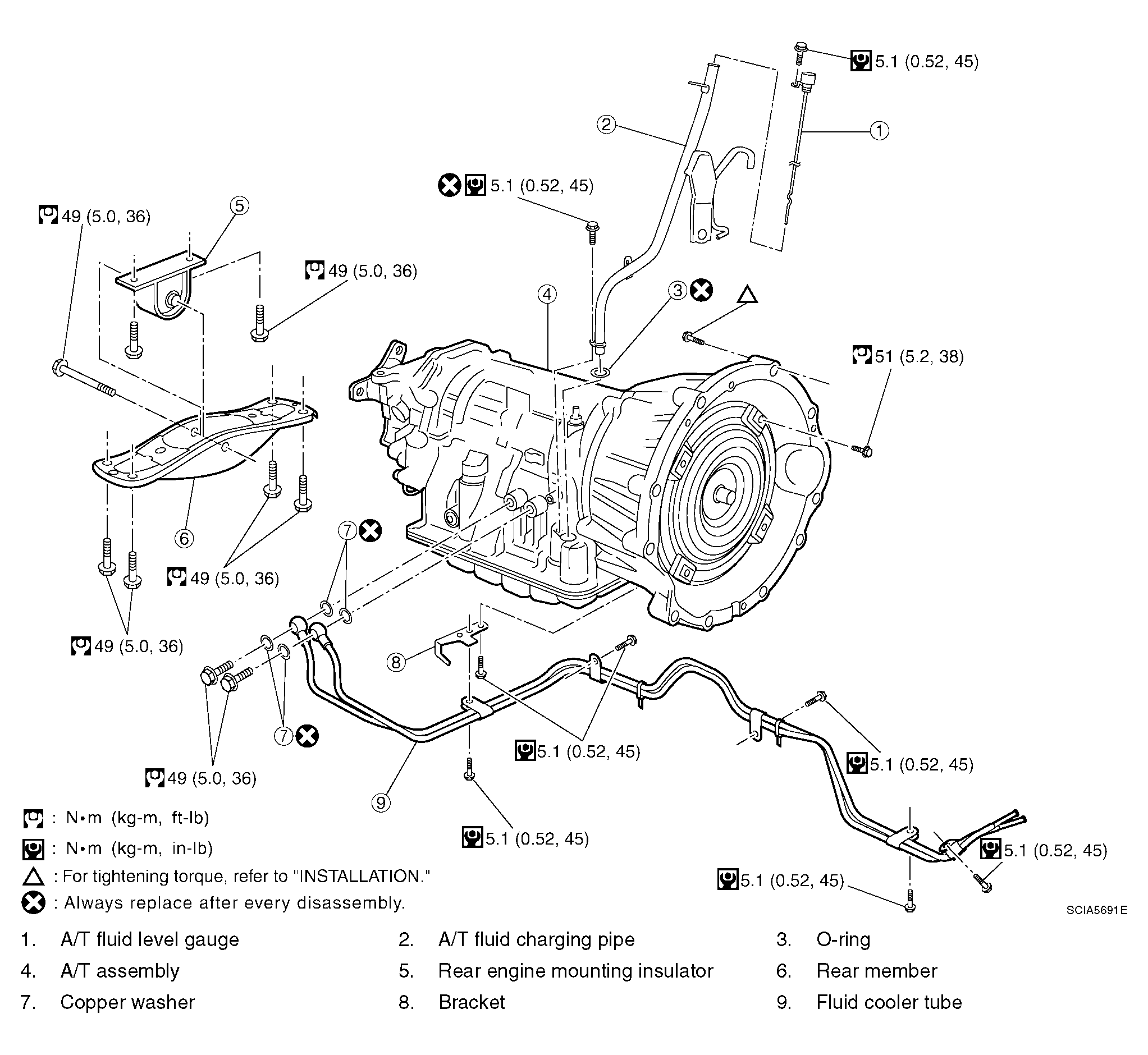

Fig 1: Transmission Assembly With Torque Specifications

G04128222

Courtesy of NISSAN MOTOR CO., U.S.A.
