Positive pressure is delivered to the EVAP system through the EVAP service port. If fuel vapor leakage in the EVAP system occurs, use a leak detector to locate the leak.

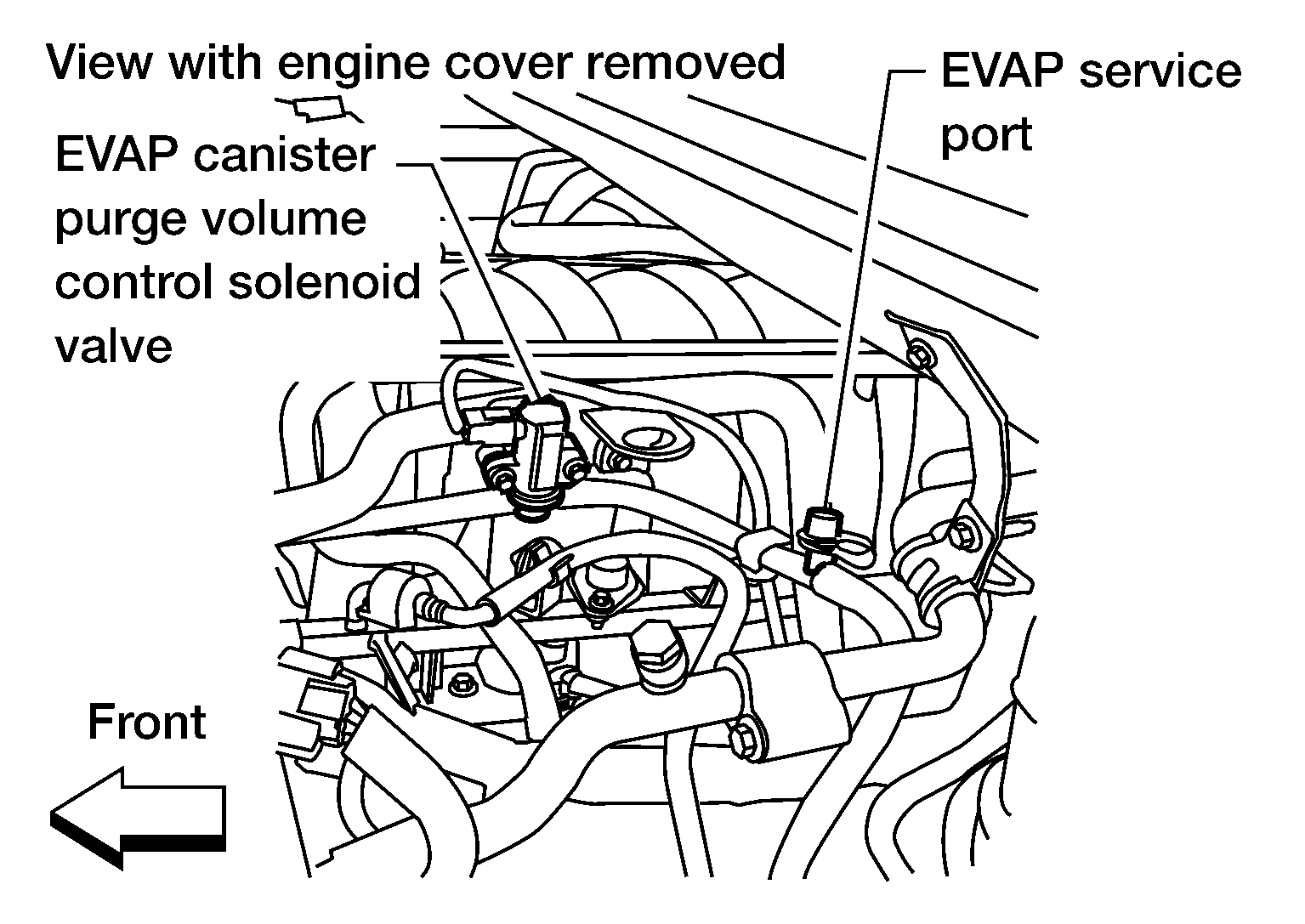

Fig 1: Locating EVAP Service Port And EVAP Canister Purge Volume Control Solenoid
