Home >> Infiniti >> 2006 >> QX56 RWD >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System - Introduction >> Basic Service Procedure >> VIN Registration >> Operation Procedure >> With CONSULT-II

With CONSULT-II

  1. Check the VIN of the vehicle and note it. Refer to "IDENTIFICATION INFORMATION ".
  2. Turn ignition switch ON and engine stopped.
  3. Select " VIN REGISTRATION" in " WORK SUPPORT" mode.
  4. Follow the instruction of CONSULT-II display.

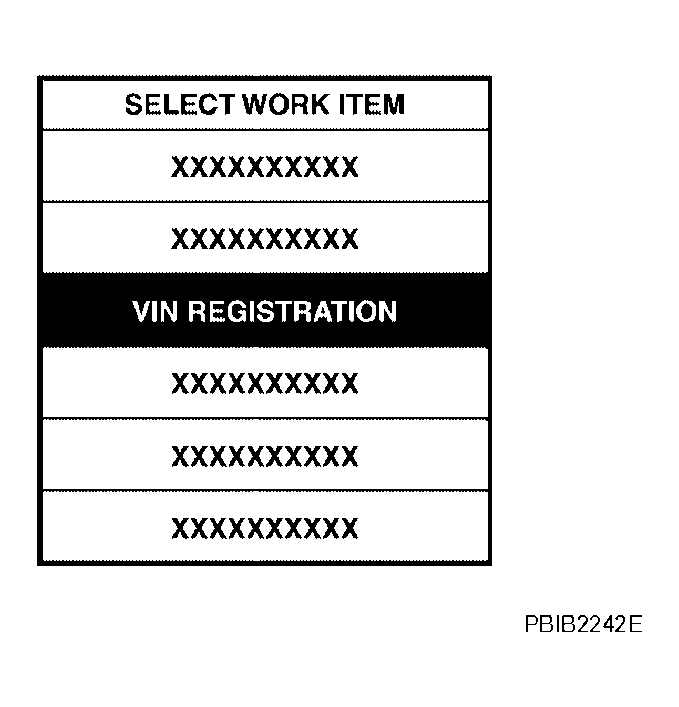

    Fig 1: "VIN REGISTRATION" CONSULT - II Display
    G04132572Courtesy of NISSAN MOTOR CO., U.S.A.
