Identifying System Components

CAUTION:
  • Be sure to use genuine Infiniti exhaust system parts or equivalents which are specially designed for heat resistance, corrosion resistance, and shape.
  • Perform the operation with the exhaust system fully cooled down because the system will be hot just after engine stops.
  • Be careful not to cut your hand on the heat insulator edge.

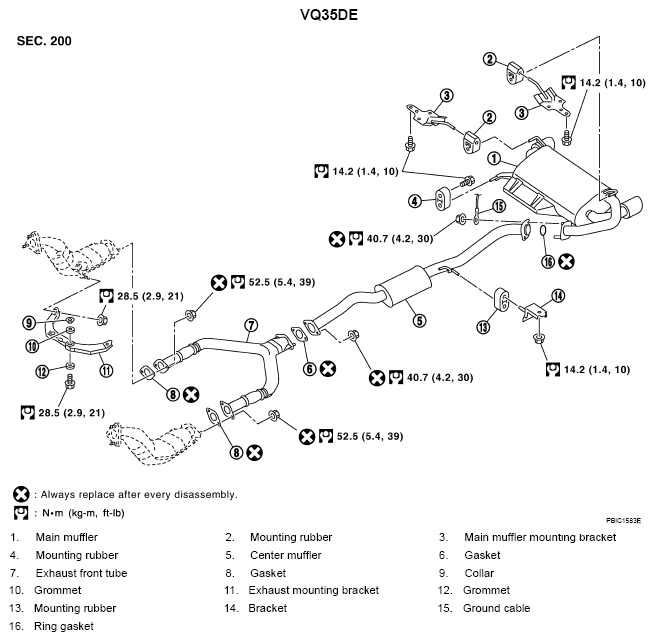

Fig 1: Exhaust System Replacement Components With Torque Specifications (VQ35DE)
G05227653Courtesy of NISSAN MOTOR CO., U.S.A.

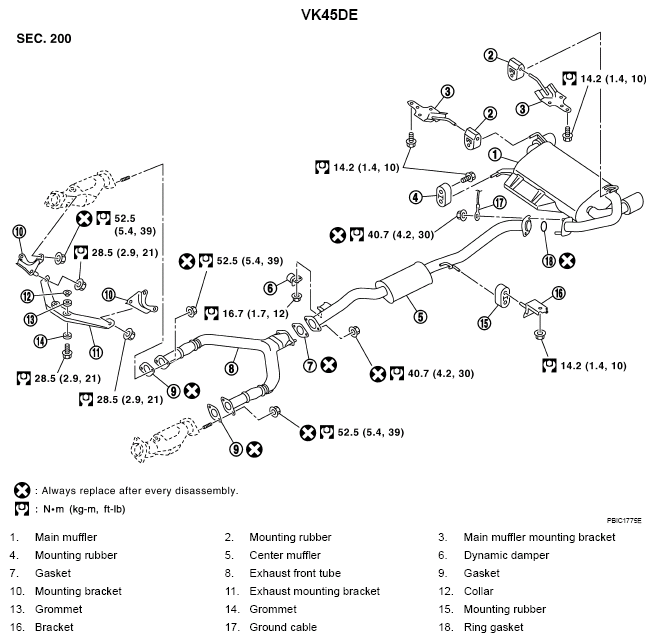

Fig 2: Exhaust System Replacement Components With Torque Specifications (VK45DE)
G05227654Courtesy of NISSAN MOTOR CO., U.S.A.
