Automatic Drive Positioner: Schematic

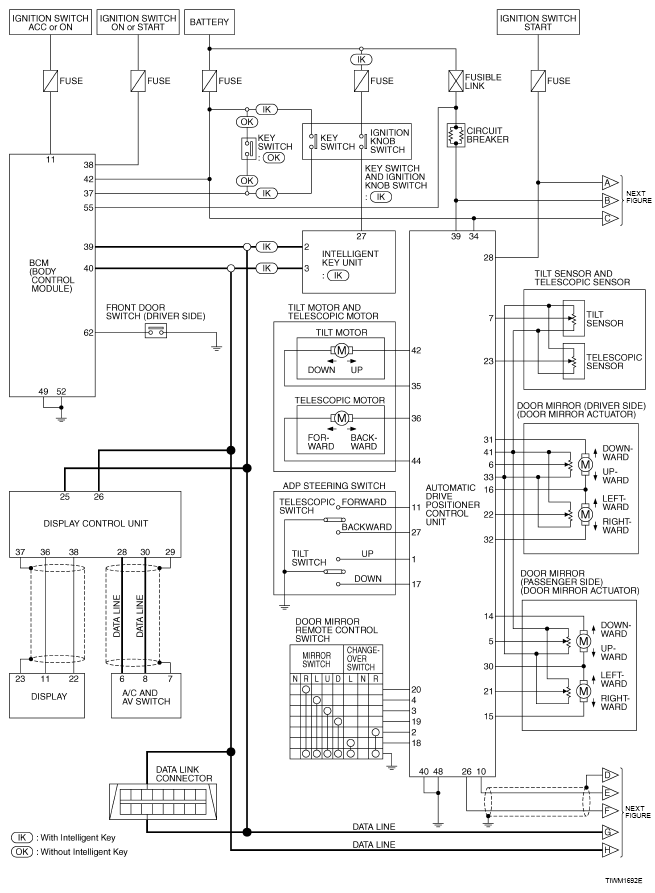

Fig 1: Identifying Automatic Drive Positioner - Schematic Diagram (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

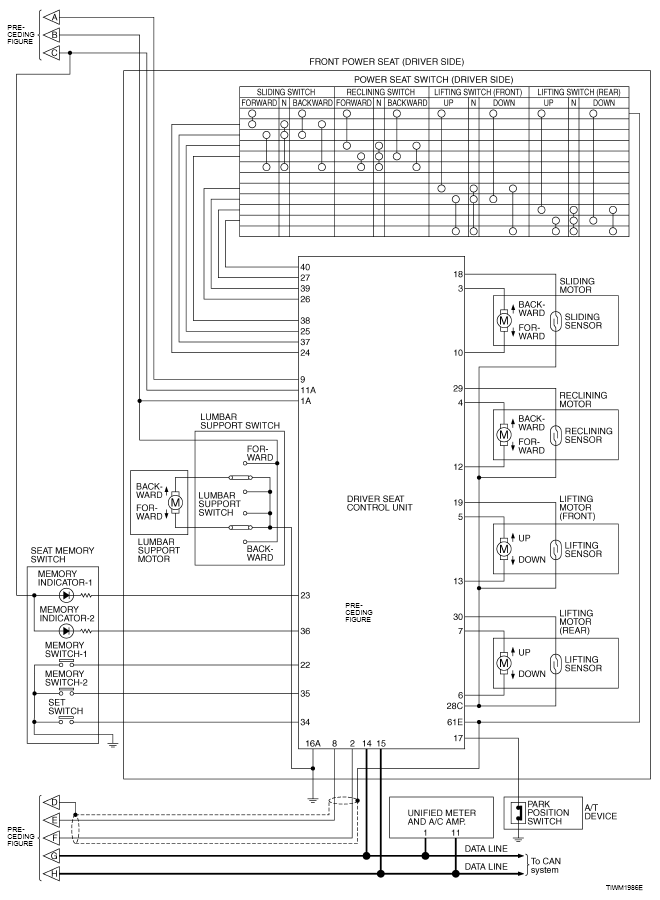

Fig 2: Identifying Automatic Drive Positioner - Schematic Diagram (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
