Memory Switch Operation

Selecting the memory

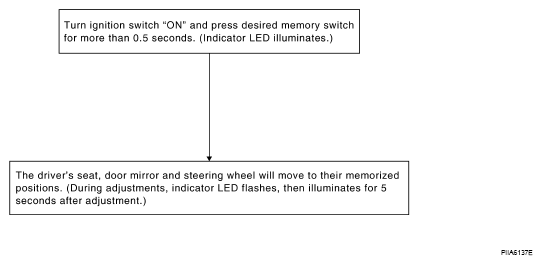

Fig 1: Identifying Memory Switch Operation - Diagnostic Flow Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: The driver's seat position and steering adjustment functions (see the following table) operate simultaneously in the order of priority.

DRIVER'S SEAT POSITION AND STEERING ADJUSTMENT FUNCTIONS CHART

Priority

Function

Priority

Function

Seat sliding, door mirror LH/RH⁽¹⁾

Seat reclining

Steering wheel telescoping

Seat lifter-FR

Steering wheel tilt

Seat lifter-RR

⁽¹⁾	In conjunction with sliding the seat, the door mirrors are positioned.
