Shift Mechanism: Construction

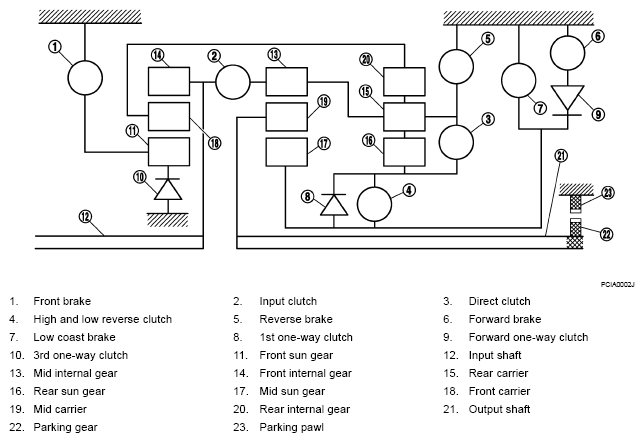

Fig 1: Identifying A/T Control System Construction Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
