Revolution Sensor Components (2WD Models Only): Components

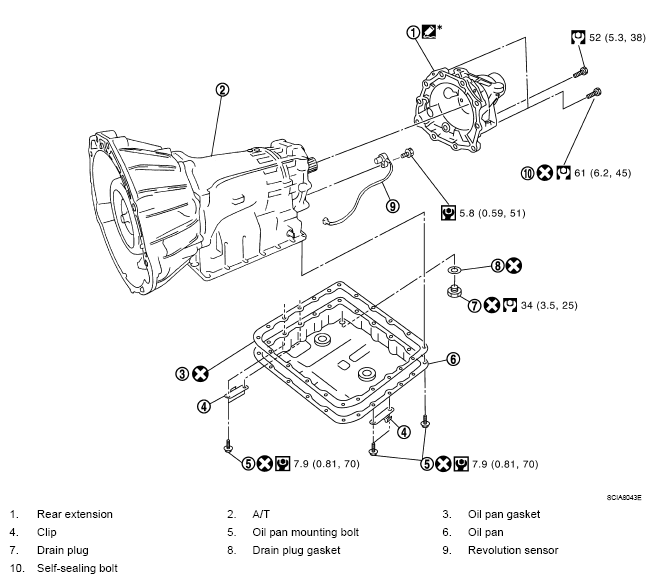

Fig 1: Identifying Revolution Sensor Components (2WD Models Only)

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to GI information to make sure icons (symbol marks) in the figure. Refer to "COMPONENTS ".

However, refer to the following symbol for others.

: Apply Genuine Anaerobic Liquid Gasket or equivalent. Refer to "RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS "
