Automatic Drive Positioner: Schematic

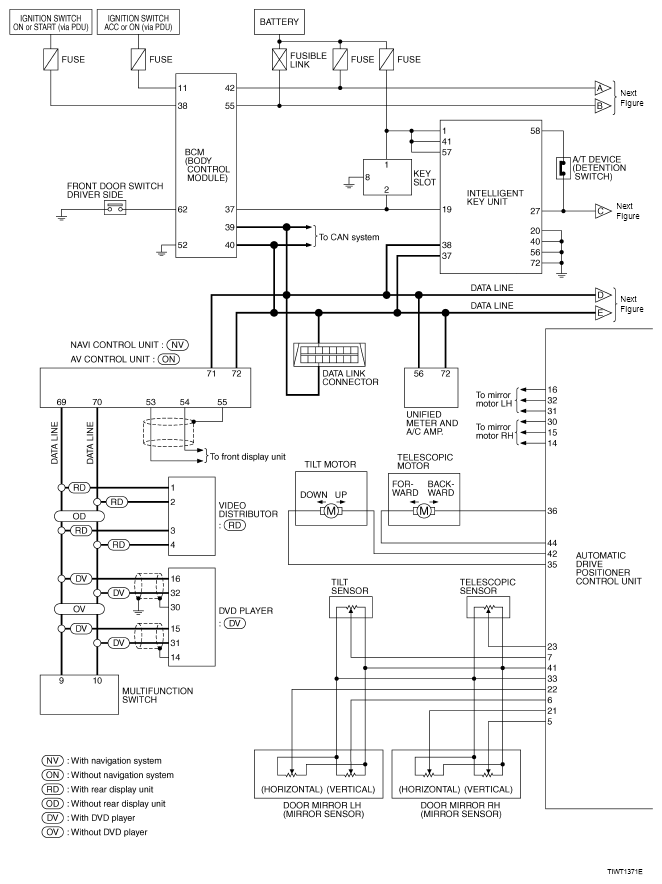

Fig 1: Automatic Drive Positioner - Schematic Diagram (1 Of 2)

G05212873

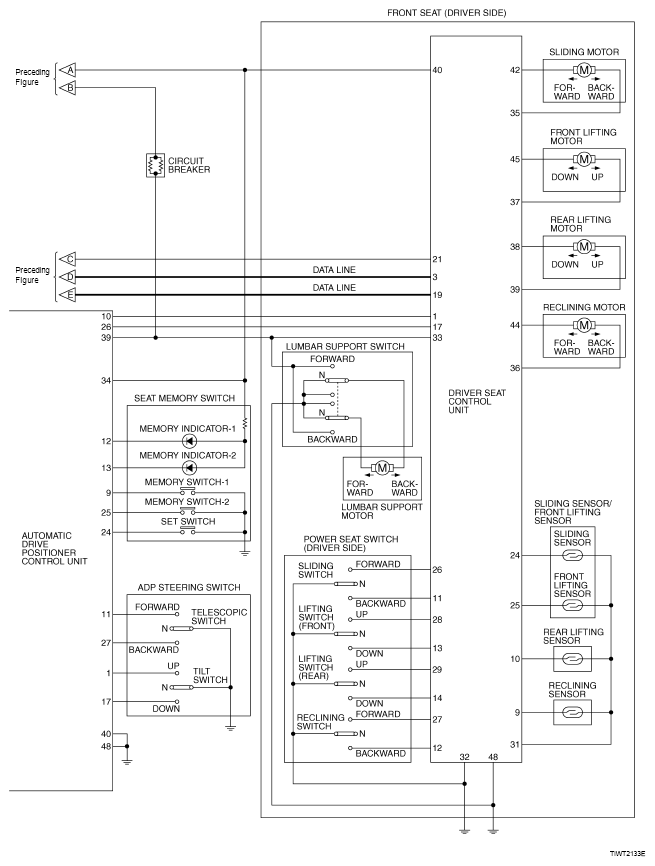

Fig 2: Automatic Drive Positioner - Schematic Diagram (2 Of 2)

G05212874
