Home >> Infiniti >> 2007 >> M35 Base >> Repair and Diagnosis >> Suspension >> Wheel Alignment >> Front Suspension >> 2WD >> Front Suspension Assembly >> Components

Front Suspension Assembly: Components

Refer to COMPONENTS .

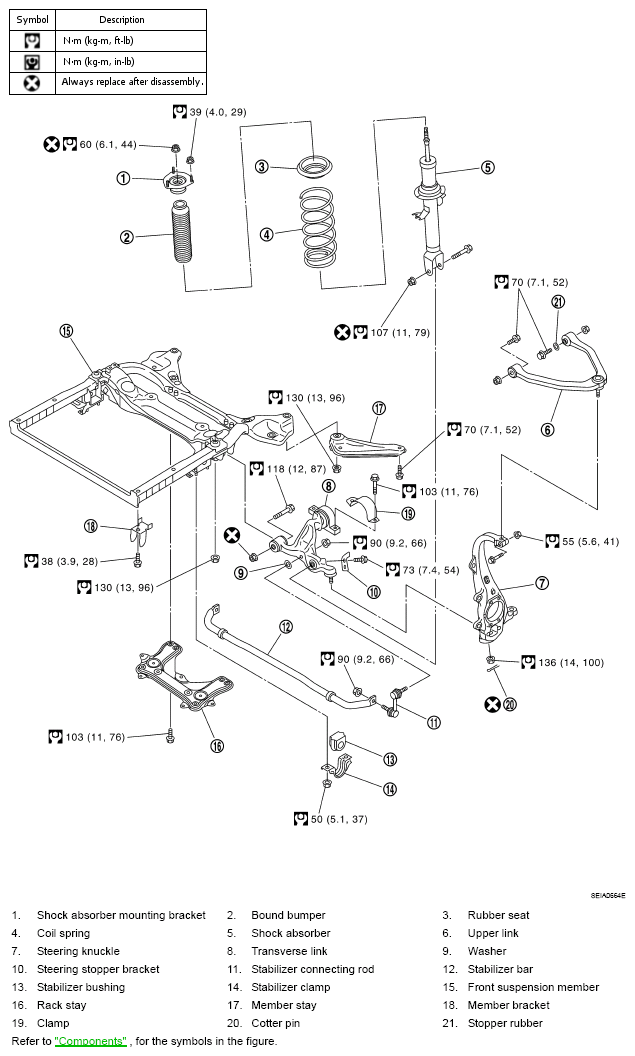

Fig 1: Exploded View Of Front Suspension Assembly Components With Torque Specifications

G05211646
