Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Brake Control System
>>
Function Diagnosis
>>
Abs
>>
System Diagram
System Diagram

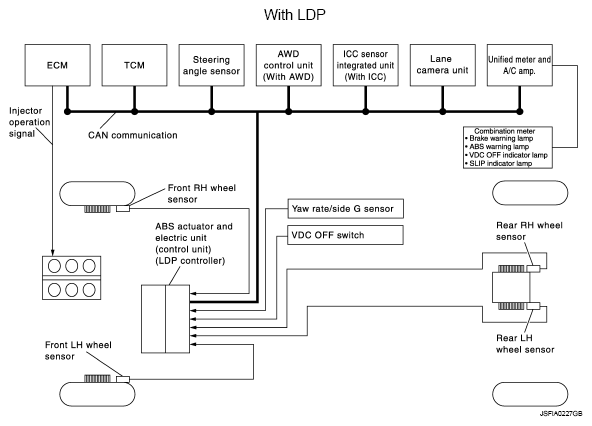

Fig 1: Identifying Anti-Lock Braking System Diagram (With LDP)
Courtesy of NISSAN MOTOR CO., U.S.A.

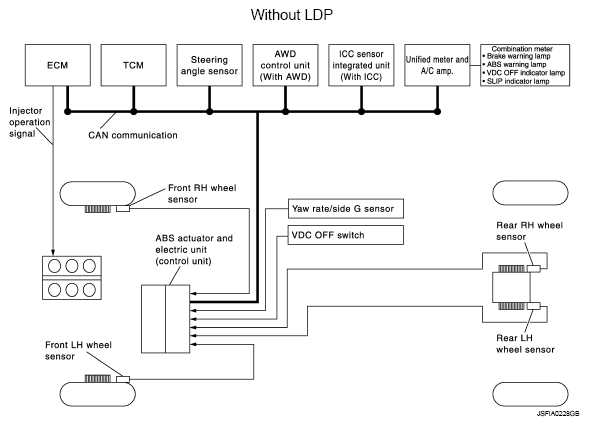

Fig 2: Identifying Anti-Lock Braking System Diagram (Without LDP)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
