Exploded View
>>
Removal
Exploded View: Removal

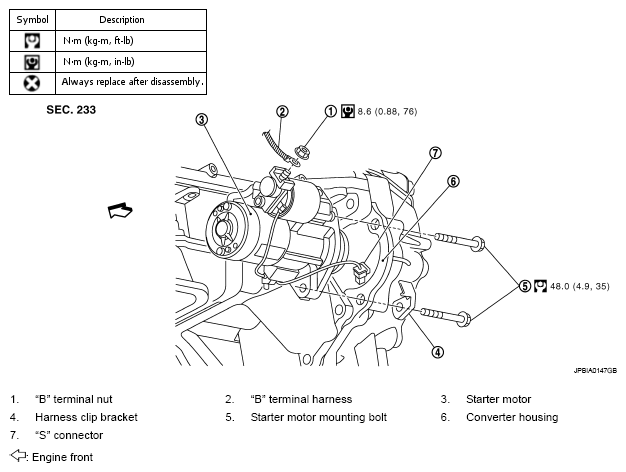

Fig 1: Identifying Starter Motor Replacement Components With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to
COMPONENTS
for symbols in the figure.
