Infiniti
>>
2008
>>
EX35 Base, AWD
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Transmission
>>
On-Vehicle Repair
>>
Control Device
>>
2WD
>>
2WD : Exploded View
2WD : Exploded View

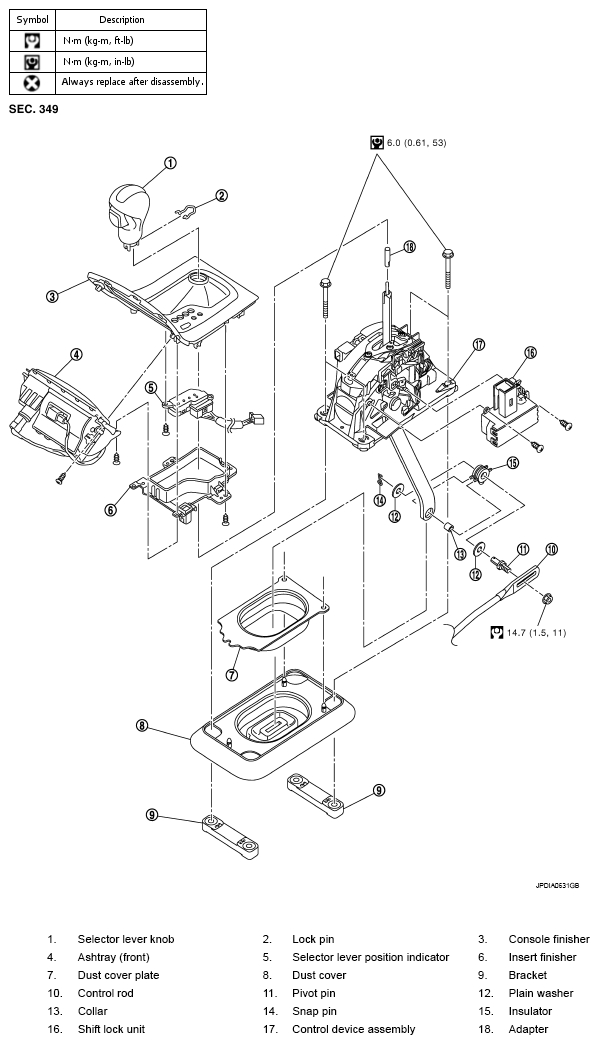

Fig 1: Exploded View Of Control Device With Torque Specifications - 2WD
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
