Exploded View

CAUTION: Before replacing BCM, perform "READ CONFIGURATION" to save or print current vehicle specification. Refer to DESCRIPTION .

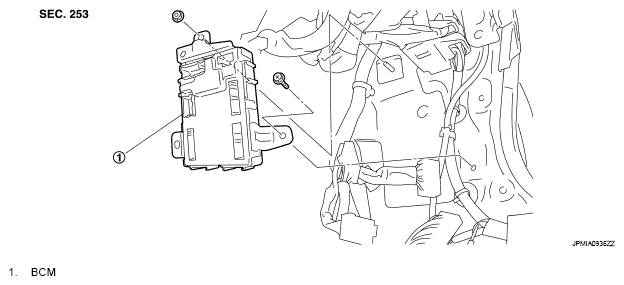

Fig 1: Identifying Body Control Module
G05731043Courtesy of NISSAN MOTOR CO., U.S.A.
