Exploded View
>>
Removal
Exploded View: Removal

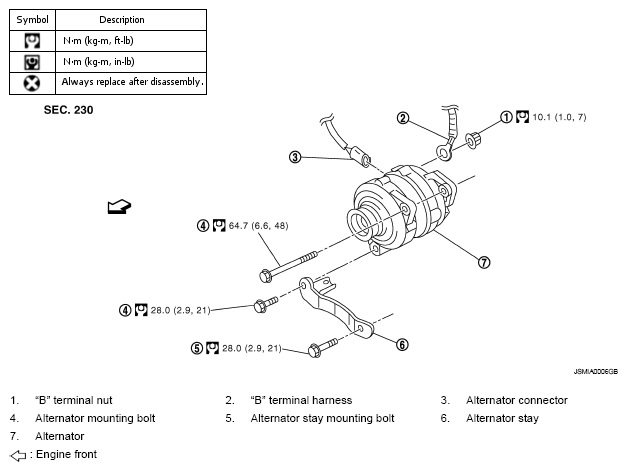

Fig 1: Exploded View Of Alternator Replacement Components With Torque Specifications - 2WD
Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to
COMPONENTS
for symbols in the figure.
