Home >> Infiniti >> 2008 >> EX35 Base, RWD >> Repair and Diagnosis >> Transmission >> Automatic Transmission >> Disassembly And Assembly >> Transmission Assembly >> Exploded View

Exploded View

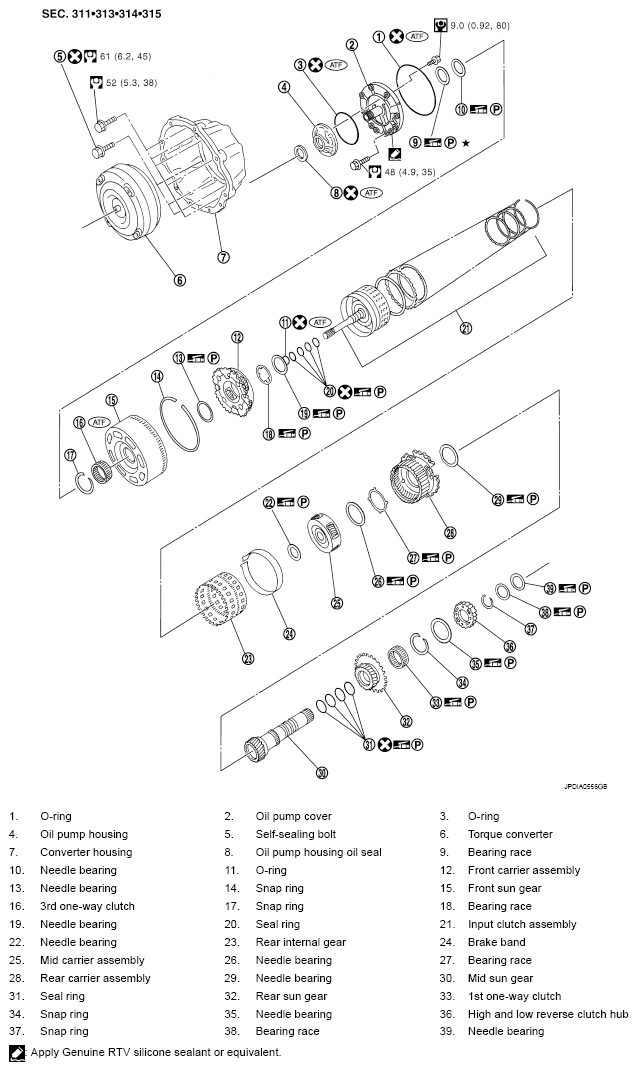

Fig 1: Exploded View Of Transmission Assembly With Torque Specifications (1 Of 2)
G05726879Courtesy of NISSAN MOTOR CO., U.S.A.

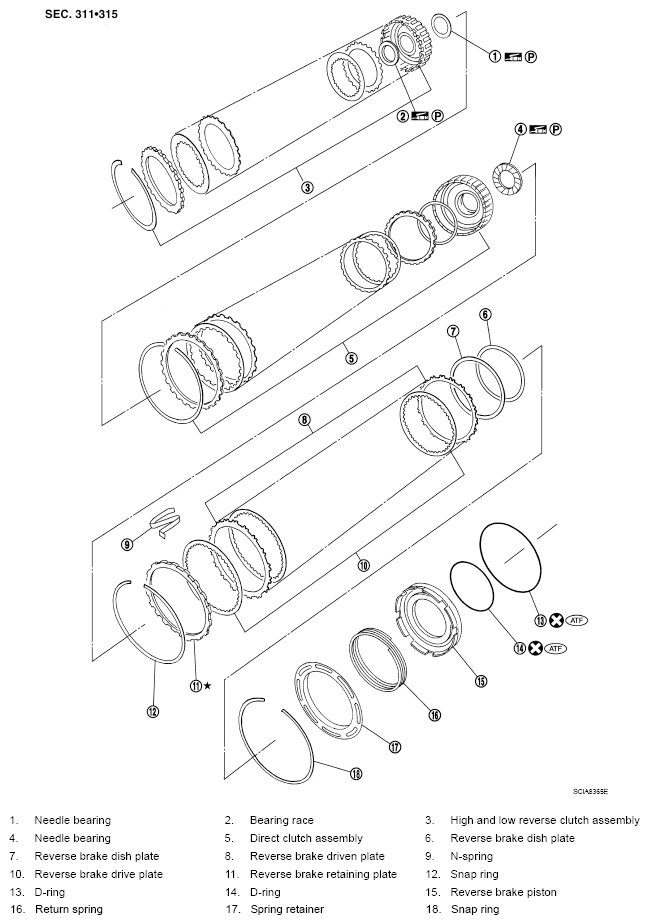

Fig 2: Exploded View Of Transmission Assembly (2 Of 2)
G05726880Courtesy of NISSAN MOTOR CO., U.S.A.

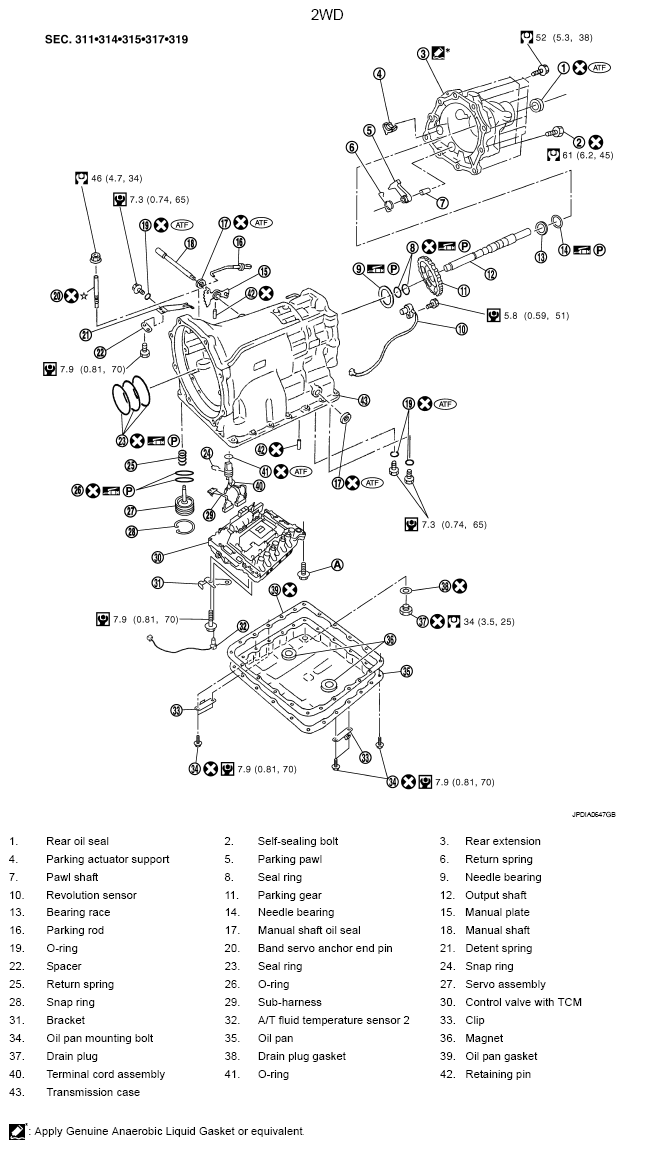

Fig 3: Exploded View Of Transmission Assembly With Torque Specifications - 2WD
G05726881Courtesy of NISSAN MOTOR CO., U.S.A.

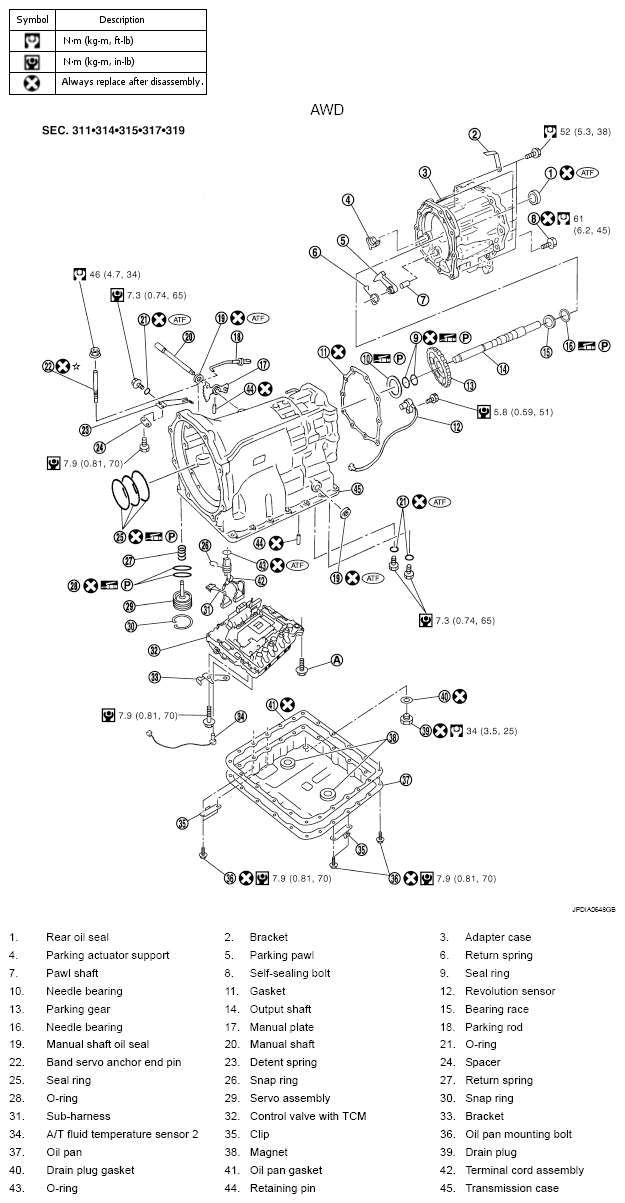

Fig 4: Exploded View Of Transmission Assembly With Torque Specifications - AWD
G05726882Courtesy of NISSAN MOTOR CO., U.S.A.
