Home >> Infiniti >> 2008 >> G35 Base >> Repair and Diagnosis >> Electrical >> Starter >> Starting System >> On-Vehicle Repair >> Starter Motor >> Exploded View >> Disassembly

Exploded View: Disassembly

Type: S114-927

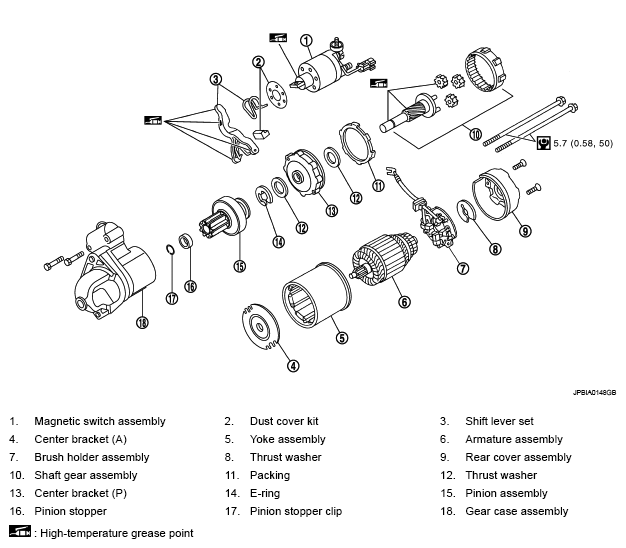

Fig 1: Starter Motor With Torque Specifications

G05224201

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols not described on the above.
